PowerLogic PFC Capacitor

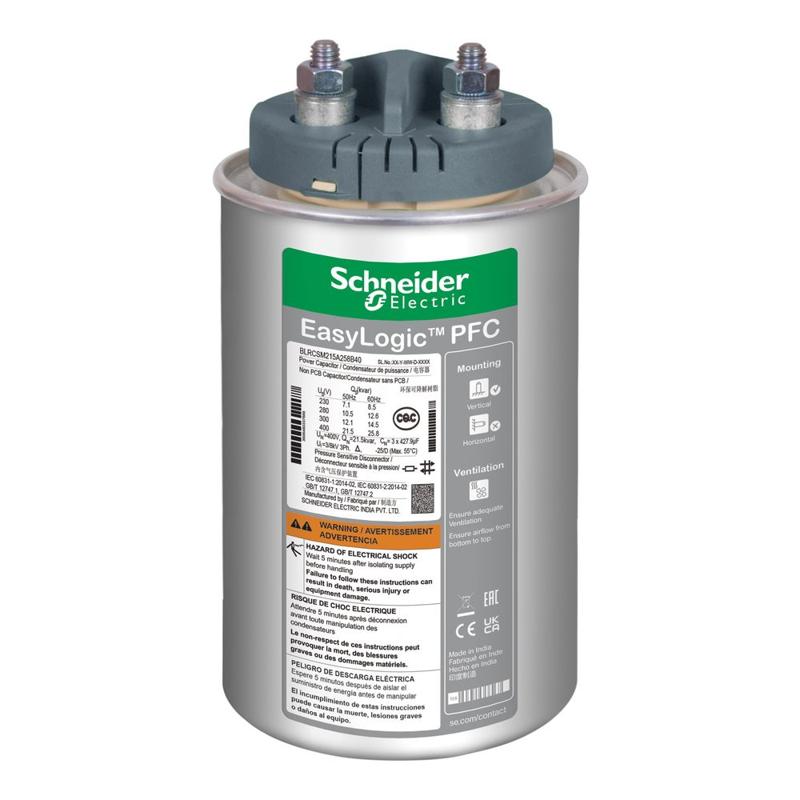

Schneider Electric catalog image for this SKU; may represent the product family.
STANDARD DUTY CAPACITOR
standard duty, 1 phase PowerLogic PFC Capacitor, 30.2kvar/36.24 kvar - 400 V - 50/60Hz
SKU BLRCSM302A362B40Schneider Electric BLRCSM302A362B40 is a standard duty capacitor in the PowerLogic PFC Capacitor range. Key specifications include reactive power: 30.2 kvar 400 V 50 Hz; rated voltage: 400 V AC 50/60 Hz; network frequency: 50/60 Hz.
30.2 kvar 400 V 50 HzReactive power
400 V AC 50/60 HzRated voltage
50/60 HzNetwork frequency
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | BLRCSM302A362B40 |
|---|---|
| Range | PowerLogic |
| Range of product | PowerLogic |
| Product or component type | Standard duty capacitor |
| Product name | PowerLogic PFC Capacitor |
| Network frequency | 50/60 Hz |
| Series name | EasyLogic PFC Capacitor |
| Electrical parameters | 30.2 kvar 400 V 50 Hz 36.2 kvar 400 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| continuous overcurrent capacity | 1.8 x In |
| Rated voltage | 400 V AC 50/60 Hz |
| Type of installation | Indoor installation |
| Standards | IEC 60831-2 IEC 60831-1 |
| Operating altitude | 0...2000 m |
| Relative humidity | 0…95 % |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
