ABBIS2-EB1100

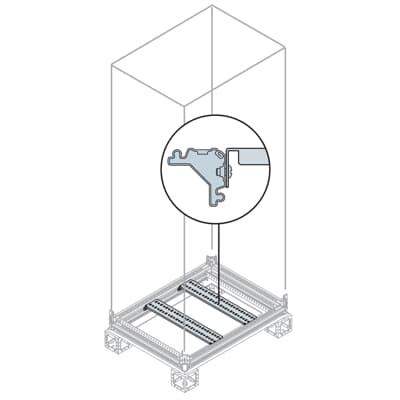

ABB catalog image for this SKU; may represent the product family.
MOUNTING ACCESSORIES (ENCLOSURE/CABINET)
IS2-EB1100
SKU EB1100ABB IS2-EB1100: Mounting accessories (enclosure/cabinet).
IS2-EB1100Product range
Mounting accessories (enclosure/cabinet)Product type
EB1100Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | EB1100 |
|---|---|
| Catalog Description | N.2 MIDDLE UPRIGHT CROSSPIECES D=1000MM |
| Sub-Function 3 | Other |
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Accessory Type | 8. Crosspieces |
| Enclosure Type | Kit - crosspieces for intermediate uprights |
| Product Type | 5B5B30B340 |
| Options Provided | 1. Pair of crosspieces for base |
| Remarks | ETIM |
| Material | Galvanized Steel sheet |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Information | No declaration needed |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108472A2584 |
| Environmental Information | 1STC804013D0209 |
| Product Net Width | 90 mm |
| Product Net Height | 28 mm |
| Product Net Depth / Length | 890 mm |
| Product Net Weight | 4.740 kg |
| Dimension Diagram | No document needed |
| Reference Depth/Length | 1000 mm |
| Reference Height | 1400 mm 1600 mm 1800 mm 2000 mm 2200 mm |
| Reference Width | 400 mm 600 mm 800 mm 1000 mm 1200 mm 1600 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Depth / Length | 900 mm |
| Package Level 1 Gross Weight | 4.840 kg |
| Package Level 1 EAN | 8015646681652 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 1STC860113 |
| Instructions and Manuals | 1STM604121R0006 |
| Data Sheet, Technical Information | 1STC804013D0209 |
| Standards | See code for structure |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
