ABBIS2-EC1480K

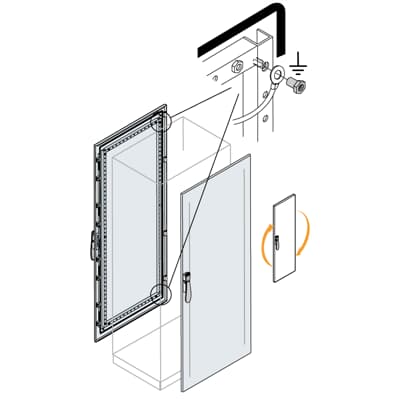

ABB catalog image for this SKU; may represent the product family.
DOOR/OPERATING PANEL (ENCLOSURE/CABINET)
IS2-EC1480K
SKU EC1480KABB IS2-EC1480K: Door/operating panel (enclosure/cabinet).
IS2-EC1480KProduct range
Door/operating panel (enclosure/cabinet)Product type
EC1480KReference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | EC1480K |
|---|---|
| Catalog Description | STANDARD BLIND FRONT/REAR DOOR 1400X800MM HXW (MUST BE COMPLETED WITH SPECIAL PROFILE DOOR) |
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Configuration Type | 3. Door |
| Enclosure Type | Kit - blind front door |
| Product Type | 5B5B20B230 |
| Door Type | Single |
| Door Surface Finishing | Opaque |
| Remarks | ETIM |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| Door Material | Steel Sheet |
| RAL Number | RAL 7035 - Light Grey |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Information | No declaration needed |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108472A2584 |
| Environmental Information | 1STC804013D0209 |
| Product Net Width | 794 mm |
| Product Net Height | 1405 mm |
| Product Net Depth / Length | 46 mm |
| Product Net Weight | 19.325 kg |
| Dimension Diagram | No document needed |
| Reference Depth/Length | 300 mm 400 mm 500 mm 600 mm 800 mm |
| Reference Height | 1400 mm |
| Reference Width | 800 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 1410 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Depth / Length | 800 mm |
| Package Level 1 Gross Weight | 19.932 kg |
| Package Level 1 EAN | 8015646834782 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 1STC860113 |
| Instructions and Manuals | 1STM604121R0008 |
| Data Sheet, Technical Information | 1STC804013D0209 |
| Standards | See code for structure |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
