ABBIS2-EK6010KN

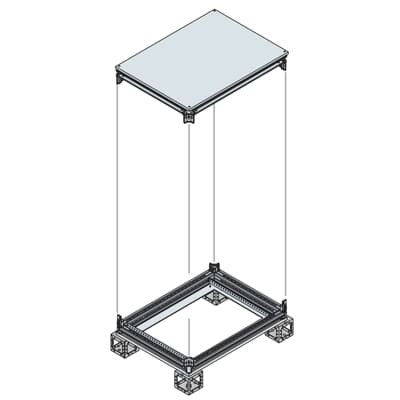

ABB catalog image for this SKU; may represent the product family.
TOP-/FLOOR ELEMENT (ENCLOSURE/CABINET)
IS2-EK6010KN
SKU EK6010KNABB IS2-EK6010KN: Top-/floor element (enclosure/cabinet).
IS2-EK6010KNProduct range
Top-/floor element (enclosure/cabinet)Product type
EK6010KNReference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | EK6010KN |
|---|---|
| Catalog Description | BASE/TOP 600X1000 WXD |
| Sub-Function 3 | Top/Bottom |
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Maximum Load Capacity | 40 kg |
| Configuration Type | 1. Base/top |
| Enclosure Type | Kit - Base/Top |
| Product Type | 5B5B20B210 |
| Remarks | ETIM |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Information | No declaration needed |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108472A2584 |
| Environmental Information | 1STC804013D0209 |
| Product Net Width | 594 mm |
| Product Net Height | 335.5 mm |
| Product Net Depth / Length | 594 mm |
| Product Net Weight | 50.49 kg |
| Dimension Diagram | No document needed |
| Reference Depth/Length | 1000 mm |
| Reference Height | 1600 mm 1800 mm 2000 mm 2200 mm |
| Reference Width | 600 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 620.000 mm |
| Package Level 1 Height | 310.000 mm |
| Package Level 1 Depth / Length | 1060.000 mm |
| Package Level 1 Gross Weight | 51.520 kg |
| Package Level 1 EAN | 8015646773623 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 1STC860113 |
| Instructions and Manuals | 1STM604121R0006 |
| Data Sheet, Technical Information | 1STC804013D0209 |
| Standards | See code for structure |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
