ABBIS2-EM2000

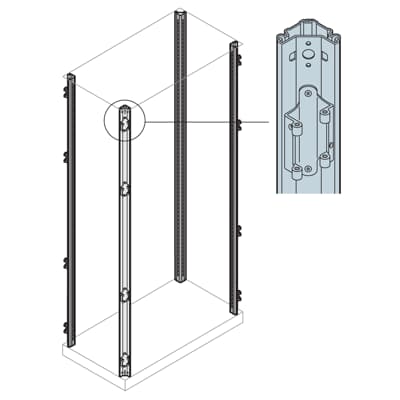

ABB catalog image for this SKU; may represent the product family.
MOUNTING RAIL/-PROFILE
IS2-EM2000
SKU EM2000ABB IS2-EM2000: Mounting rail/-profile.
IS2-EM2000Product range
Mounting rail/-profileProduct type
EM2000Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | EM2000 |
|---|---|
| Catalog Description | N.4 STANDARD UPRIGHTS H=2000MM |
| Configuration Type | 2. Uprights |
| Enclosure Type | Kit - uprights for standard structure |
| Product Type | 5B5B20B220 |
| Remarks | ETIM |
| Material | Galvanized Steel sheet |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Information | No declaration needed |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108472A2584 |
| Environmental Information | 1STC804013D0209 |
| Product Net Width | 46.9 mm |
| Product Net Height | 1900 mm |
| Product Net Depth / Length | 46.9 mm |
| Product Net Weight | 15.8 kg |
| Dimension Diagram | No document needed |
| Reference Depth/Length | 400 mm 500 mm 600 mm 800 mm 1000 mm |
| Reference Height | 2000 mm |
| Reference Width | 400 mm 600 mm 800 mm 1000 mm 1200 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 0.100 m |
| Package Level 1 Height | 1.905 m |
| Package Level 1 Depth / Length | 0.100 m |
| Package Level 1 Gross Weight | 15.800 kg |
| Package Level 1 EAN | 8015646676177 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 1STC860113 |
| Instructions and Manuals | 1STM604121R0006 |
| Data Sheet, Technical Information | 1STC804013D0209 |
| Standards | See code for structure |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
