ABBIS2-EM2011

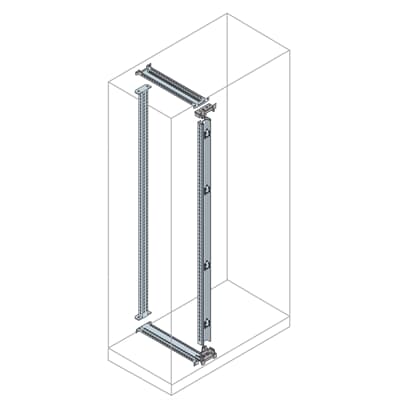

ABB catalog image for this SKU; may represent the product family.
MOUNTING RAIL/-PROFILE
IS2-EM2011
SKU EM2011ABB IS2-EM2011: Mounting rail/-profile.
IS2-EM2011Product range
Mounting rail/-profileProduct type
EM2011Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | EM2011 |
|---|---|
| Catalog Description | INTERMEDIATE BACK UPRIGHTS H=2000MM |
| Suitable For | Automation and Control Enclosures (System pro E control) - IS2 |
| Suitable for Product Class | Automation and Control Enclosures (System pro E control) |
| Accessory Type | 10. Cable container |
| Enclosure Type | Kit - Intermediate rear upright for cable container |
| Product Type | 5B5B20B220 |
| Options Provided | 4. Intermediate rear upright |
| Remarks | ETIM |
| Material | Galvanized Steel sheet |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Information | No declaration needed |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108472A2584 |
| Environmental Information | 1STC804013D0209 |
| Product Net Width | 155 mm |
| Product Net Height | 1910 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 3.4 kg |
| Dimension Diagram | No document needed |
| Reference Depth/Length | 300 mm 400 mm 500 mm 600 mm 800 mm 1000 mm |
| Reference Height | 2000 mm |
| Reference Width | 400 mm 600 mm 800 mm 1000 mm 1200 mm 1600 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 155 mm |
| Package Level 1 Height | 1910 mm |
| Package Level 1 Depth / Length | 40 mm |
| Package Level 1 Gross Weight | 3.4 kg |
| Package Level 1 EAN | 8015646711953 |
| Package Level 2 Width | 0.155 m |
| Package Level 2 Height | 0.04 m |
| Package Level 2 Depth / Length | 1.91 m |
| Package Level 2 Gross Weight | 4.728 kg |
| Package Level 2 EAN | 8015646711953 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 1STC860113 |
| Instructions and Manuals | 1STM604121R0008 |
| Data Sheet, Technical Information | 1STC804013D0209 |
| Standards | See code for structure |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
