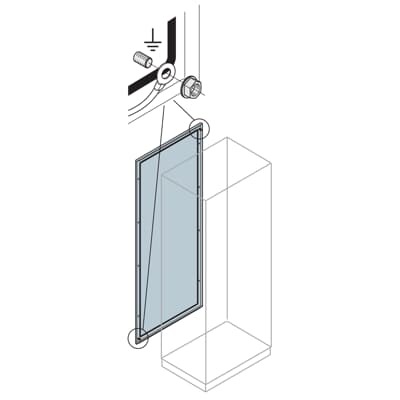

ABBIS2-EP1412K
ABB catalog image for this SKU; may represent the product family.
SIDE-/BACK PANEL (ENCLOSURE/CABINET)
IS2-EP1412K
SKU EP1412KABB IS2-EP1412K: Side-/back panel (enclosure/cabinet).
IS2-EP1412KProduct range
Side-/back panel (enclosure/cabinet)Product type
EP1412KReference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | EP1412K |
|---|---|
| Catalog Description | REAR BLIND PANEL 1400X1200MM (HXW) |
| Sub-Function 3 | Back panel |
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Configuration Type | 4. Rear panel |
| Enclosure Type | Kit - rear panel |
| Product Type | 5B5B20B260 |
| Remarks | ETIM |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| RAL Number | RAL 7035 - Light Grey |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Information | No declaration needed |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108472A2584 |
| Environmental Information | 1STC804013D0209 |
| Product Net Width | 1190 mm |
| Product Net Height | 1396 mm |
| Product Net Depth / Length | 16 mm |
| Product Net Weight | 22.006 kg |
| Dimension Diagram | No document needed |
| Reference Depth/Length | 400 mm 500 mm 600 mm 800 mm |
| Reference Height | 1400 mm |
| Reference Width | 1200 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 1410 mm |
| Package Level 1 Height | 25 mm |
| Package Level 1 Depth / Length | 1200 mm |
| Package Level 1 Gross Weight | 22.45 kg |
| Package Level 1 EAN | 8015646834874 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 1STC860113 |
| Instructions and Manuals | 1STM604121R0007 |
| Data Sheet, Technical Information | 1STC804013D0209 |
| Standards | See code for structure |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
