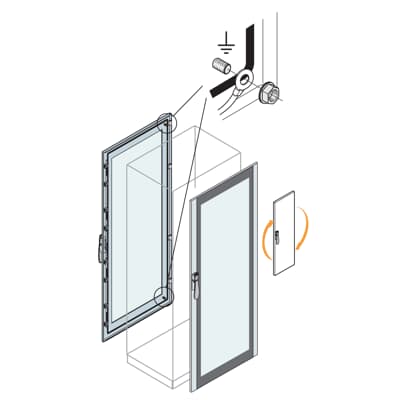

ABBIS2-ET2010K
ABB catalog image for this SKU; may represent the product family.
DOOR/OPERATING PANEL (ENCLOSURE/CABINET)
IS2-ET2010K
SKU ET2010KABB IS2-ET2010K: Door/operating panel (enclosure/cabinet).
IS2-ET2010KProduct range
Door/operating panel (enclosure/cabinet)Product type
ET2010KReference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | ET2010K |
|---|---|
| Catalog Description | STANDARD TRANSPARENT DOOR 2000X100MM (HXW) |
| Configuration Type | 3. Door |
| Enclosure Type | Kit - glazed front door |
| Product Type | 5B5B20B240 |
| Door Type | Single |
| Door Surface Finishing | Transparent |
| Remarks | ETIM |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| Door Material | Glass |
| RAL Number | RAL 7035 - Light Grey |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Information | No declaration needed |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108472A2584 |
| Environmental Information | 1STC804013D0209 |
| Product Net Width | 994 mm |
| Product Net Height | 1996 mm |
| Product Net Depth / Length | 46 mm |
| Product Net Weight | 29.390 kg |
| Dimension Diagram | No document needed |
| Reference Depth/Length | 400 mm 500 mm 600 mm 800 mm 1000 mm |
| Reference Height | 2000 mm |
| Reference Width | 1000 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 1.000 m |
| Package Level 1 Height | 2.010 m |
| Package Level 1 Depth / Length | 0.050 m |
| Package Level 1 Gross Weight | 29.990 kg |
| Package Level 1 EAN | 8015646745033 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 1STC860113 |
| Instructions and Manuals | 1STM604121R0008 |
| Data Sheet, Technical Information | 1STC804013D0209 |
| Standards | See code for structure |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
