FT

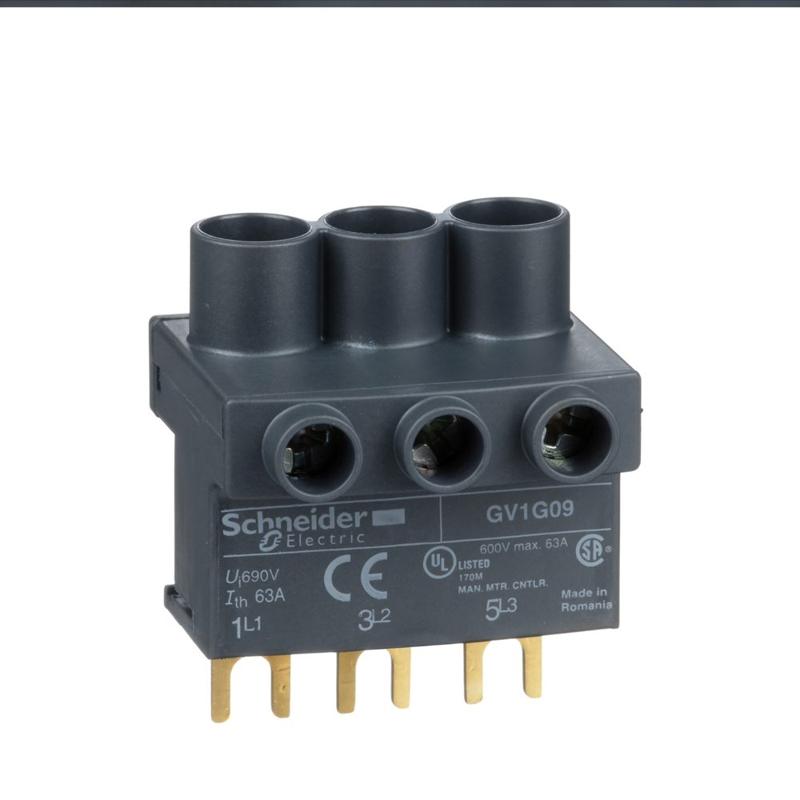

Schneider Electric catalog image for this SKU; may represent the product family.
TERMINAL BLOCK
TeSys GV2, TeSys D & TeSys U - terminal block - 3P - from the top
SKU GV1G09Schneider Electric GV1G09 is a terminal block in the FT range. Key specifications include poles: 3P; ip protection: IP20 conforming to IEC 60529; net weight: 0.04 kg.
3PPoles
IP20 conforming to IEC 60529IP protection
0.04 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | GV1G09 |
|---|---|
| Range | Linergy |
| Product name | FT |
| Device short name | GV1G |
| Product or component type | Terminal block |
| Accessory / separate part category | Connection accessory |
| Poles description | 3P |
| Range compatibility | TeSys GV2 TeSys Deca TeSys U TeSys LS1 |
| [Ie] rated operational current | 63 A |
| Mounting location | Top |
| IP degree of protection | IP20 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 |
| Connections - terminals | Screw clamp terminals 1 cable(s) (4 AWG) - solid Screw clamp terminals 1 cable(s) 1.5…16 mm² - flexible with cable end Screw clamp terminals 1 cable(s) 1.5…16 mm² - flexible without cable end Screw clamp terminals 1 cable(s) 1.5…25 mm² - solid Screw clamp terminals 2 cable(s) 1.5…4 mm² - flexible with cable end Screw clamp terminals 2 cable(s) 1.5…6 mm² - solid Screw clamp terminals 2 cable(s) 1.5…4 mm² - flexible without cable end Screw clamp terminals 1 cable(s) (4 AWG) - flexible |
| Tightening torque | 1.7 N.m - on screw clamp terminals 2.2 N.m - on connector |
| Net weight | 0.04 kg |
| Product certifications | CE UKCA |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
