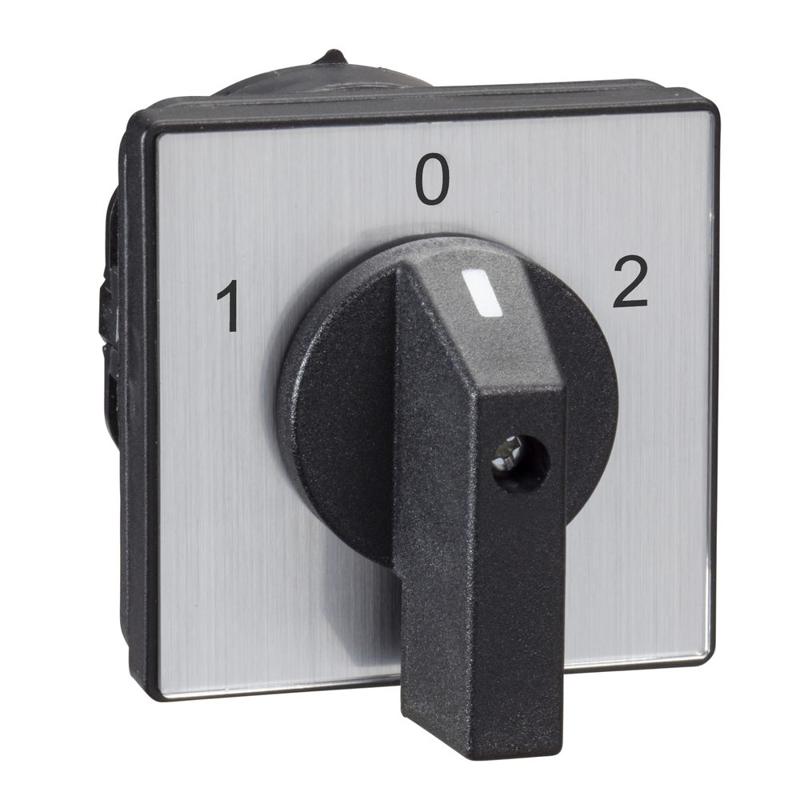

Schneider Electric catalog image for this SKU; may represent the product family.
COMPLETE CAM SWITCH
cam changeover switch - 2-pole - 60° - 32 A - screw mounting
SKU K30D002UPSchneider Electric K30D002UP is a complete cam switch in the Harmony K range. Key specifications include poles: 2P; ip protection: IP40 conforming to IEC 60529; net weight: 0.25 kg.
2PPoles
IP40 conforming to IEC 60529IP protection
0.25 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | K30D002UP |
|---|---|
| Range of product | Harmony K |
| Product or component type | Complete cam switch |
| Component name | K30 |
| [Ith] conventional free air thermal current | 32 A |
| Mounting location | Front |
| fixing mode | 4 holes |
| Cam switch head type | With front plate 64 x 64 mm |
| Type of operator | Black handle |
| Rotary handle padlocking | Without |
| Presentation of legend | With metallic legend, 1 - 0 - 2 black marking |
| Cam switch function | Changeover switch |
| Return | Without |
| Off position | With Off position |
| Poles description | 2P |
| Switching positions | Right: 0° - 60° Left: 0° - 300° |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Switching angle | 60 ° |
| [Ui] rated insulation voltage | 690 V (pollution degree 3) conforming to IEC 60947-1 |
| Short-circuit current | 5000 A |
| Short-circuit protection | 50 A cartridge fuse, type gG |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 947-1 6 kV conforming to IEC 947-1 |
| Contact operation | Slow-break |
| positive opening | With |
| Electrical connection | Captive screw clamp terminals flexible, clamping capacity: 2 x 4 mm² Captive screw clamp terminals solid, clamping capacity: 2 x 6 mm² |
| Tightening torque | 1.2 N.m |
| Switching capacity in mA | 11000 mA DC at 120 V 2 contact(s) for inductive load (T = 50 ms) 11000 mA DC at 180 V 3 contact(s) for inductive load (T = 50 ms) 11000 mA DC at 60 V 1 contact(s) for inductive load (T = 50 ms) 1200 mA DC at 220 V 1 contact(s) for resistive load (T = 1 ms) 1200 mA DC at 440 V 2 contact(s) for resistive load (T = 1 ms) 1200 mA DC at 660 V 3 contact(s) for resistive load (T = 1 ms) 16000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms) 16000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms) 16000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms) 23000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms) 23000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms) 23000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms) 25000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms) 25000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms) 25000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms) 3200 mA DC at 110 V 1 contact(s) for inductive load (T = 50 ms) 3200 mA DC at 220 V 2 contact(s) for inductive load (T = 50 ms) 3200 mA DC at 330 V 3 contact(s) for inductive load (T = 50 ms) 32000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms) 32000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms) 32000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms) 32000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms) 32000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms) 32000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms) 32000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms) 32000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms) 32000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms) 400 mA DC at 440 V 1 contact(s) for resistive load (T = 1 ms) 400 mA DC at 660 V 2 contact(s) for resistive load (T = 1 ms) 6500 mA DC at 110 V 1 contact(s) for resistive load (T = 1 ms) 6500 mA DC at 220 V 2 contact(s) for resistive load (T = 1 ms) 6500 mA DC at 330 V 3 contact(s) for resistive load (T = 1 ms) |
| Mechanical durability | 300000 cycles |
| CAD overall width | 64 mm |
| CAD overall height | 64 mm |
| CAD overall depth | 93 mm |
| Net weight | 0.25 kg |
| Standards | IEC 60947-3 |
| Product certifications | CULus 120 V 2 hp 1 phase CULus 240 V 5 hp 1 phase CULus 240 V 5 hp 3 phases CULus 480 V 20 hp 3 phases |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 Class II conforming to NF C 20-030 |
