TeSys LE

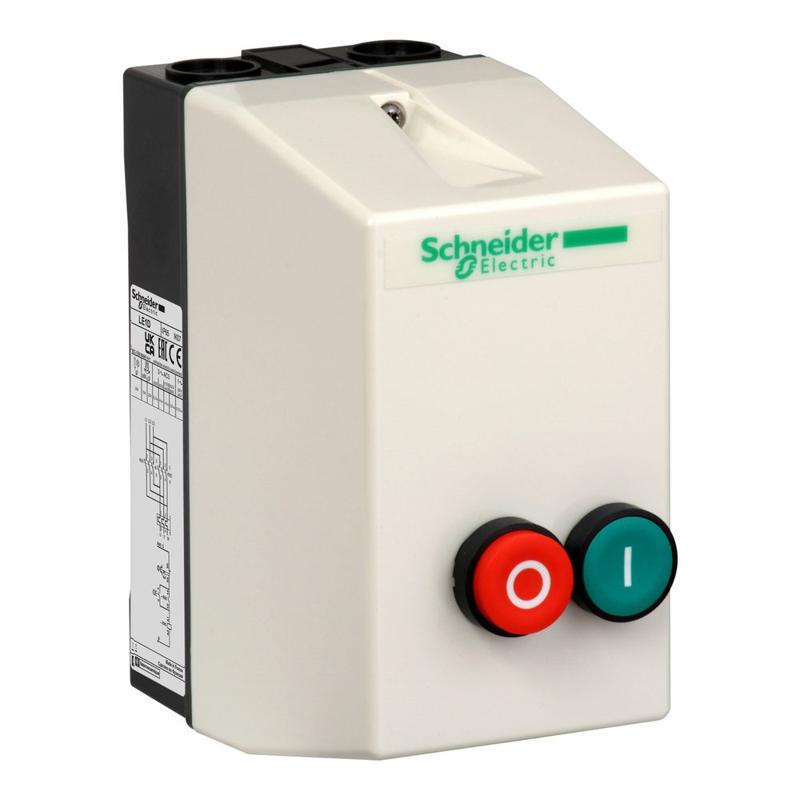

Schneider Electric catalog image for this SKU; may represent the product family.
ENCLOSED DOL STARTER
Enclosed DOL starter, TeSys LE, 7.5kW at 400V, Ith: 17A, 400V AC coil, including 1 LC1D, 2 push-buttons
SKU LE1D18V7Schneider Electric LE1D18V7 is a enclosed dol starter in the TeSys LE range. Key specifications include control voltage: 400 V AC 50/60 Hz; ip protection: IP65 conforming to IEC 60529; net weight: 1.015 kg.
400 V AC 50/60 HzControl voltage
IP65 conforming to IEC 60529IP protection
1.015 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | LE1D18V7 |
|---|---|
| Range | TeSys |
| Product name | TeSys LE |
| Device short name | LE1D |
| Product or component type | Enclosed DOL starter |
| Device application | Standard |
| Utilisation category | AC-3 |
| Device composition | Thermal overload relay ordered separately Contactor |
| Control type | Push-button start green I Push-button stop/reset red O |
| Motor power kW | 10 kW at 500 V AC 50/60 Hz 10 kW at 660/690 V AC 50/60 Hz 4 kW at 220/230 V AC 50/60 Hz 9 kW at 415 V AC 50/60 Hz 9 kW at 440 V AC 50/60 Hz 7.5 kW at 380/400 V AC 50/60 Hz |
| [Uc] control circuit voltage | 400 V AC 50/60 Hz |
| [Ith] Conventional free air thermal current | 17 A |
| Cable entry number | 2 ISO20 top 2 ISO25 top 2 ISO20 bottom 2 ISO25 bottom |
| Width | 101 mm |
| Height | 201 mm |
| Depth | 153.5 mm |
| Net weight | 1.015 kg |
| Standards | IEC 60947-4-1 |
| Product certifications | CB Scheme CE UKCA |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Ambient air temperature for operation | -5…40 °C |
| Material | Polycarbonate |
| Environmental characteristic | Standard environment |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
