EasyPact CVS

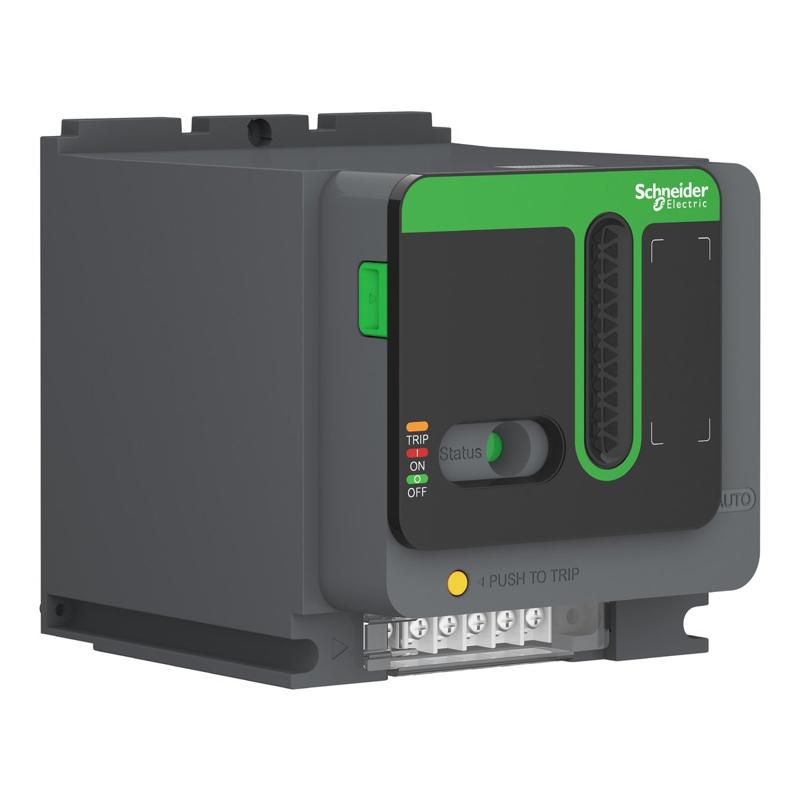

Schneider Electric catalog image for this SKU; may represent the product family.
MOTOR MECHANISM
Motor mechanism, 110...230VAC@50/60Hz, 110...230VDC
SKU LV435010Schneider Electric LV435010 is a motor mechanism in the EasyPact CVS range. Key specifications include mounting mode: Fixed; ip protection: IP20; product range: EasyPact CVS.
FixedMounting mode
IP20IP protection
EasyPact CVSProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 17, 2026.
| Product reference | LV435010 |
|---|---|
| Range | EasyPact |
| Product name | EasyPact CVS |
| Product or component type | Motor mechanism |
| Device short name | motor mechanism module |
| Product compatibility | EasyPact CVS400...630 circuit-breaker |
| Control type | Local/remote control |
| Control signal type | Impulse and maintained |
| Supply voltage [Us] | 110...230 V AC 50/60 Hz 110...230 V DC |
| Mounting mode | Fixed |
| Response time | <= 500 ms (opening) <= 1 s (closing) |
| Maximum operating frequency | <= 2 cycles per minute |
| Maximum power consumption in VA | 300 VA closing 300 VA opening |
| Electrical durability | 20000 cycles 110...230 V AC 50/60 Hz 20000 cycles 110...230 V DC |
| Provided equipment | Keylock |
| Locking options description | Transparent cover |
| IK degree of protection | IK07 |
| IP degree of protection | IP20 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
