MasterPact
Schneider Electric catalog image for this SKU; may represent the product family.
UNDERVOLTAGE RELEASE

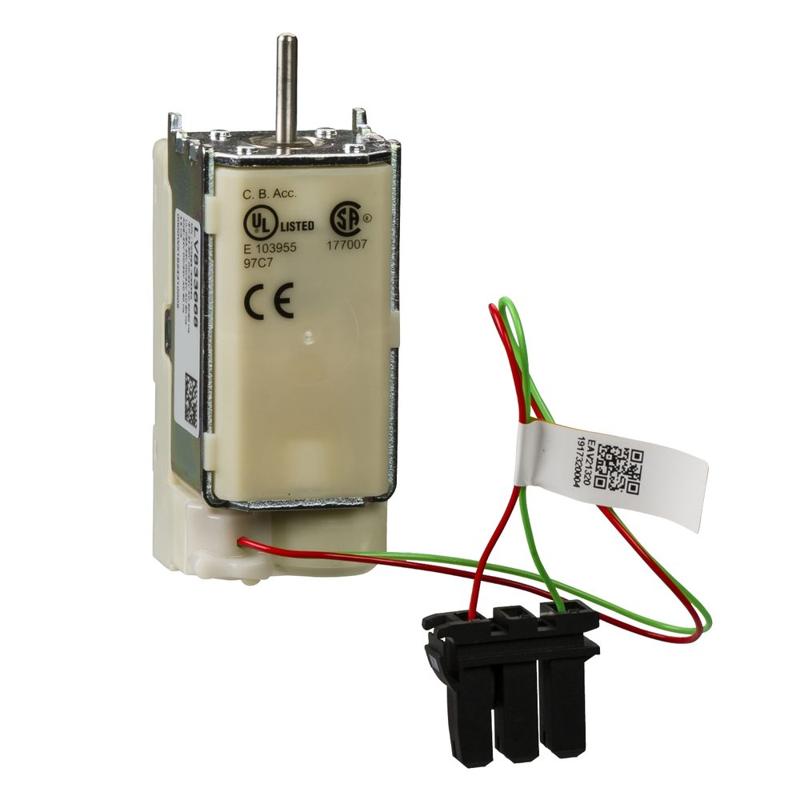

MN undervoltage release, MasterPact MTZ1/MTZ2/MTZ3, standard, 200/250VAC 50/60Hz, 200/250VDC, spare part
SKU LV833671SPSchneider Electric LV833671SP is a undervoltage release in the MasterPact range. Key specifications include product range: MasterPact; product type: Undervoltage release; reference: LV833671SP.
MasterPactProduct range
Undervoltage releaseProduct type
LV833671SPReference
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | LV833671SP |
|---|---|
| Maximum response time | 45 ms on opening for MasterPact MTZ1 95 ms on opening for MasterPact MTZ2 95 ms on opening for MasterPact MTZ3 |
| Range | MasterPact |
| Device short name | MN |
| Product or component type | Undervoltage release |
| Device application | Safety |
| Range compatibility | Masterpact MasterPact MTZ1 circuit breaker Masterpact MasterPact MTZ2 circuit breaker Masterpact MasterPact MTZ3 circuit breaker |
| Voltage release type | Instantaneous |
| Control type | Standard |
| [Un] voltage power supply | 200...250 V AC 50/60 Hz 200...250 V DC |
| Threshold tripping voltage | 0.35...0.7 Un opening 0.85 Un closing |
| Holding power consumption | 4.5 W |
| Circuit breaker mounting mode | Fixed/drawout |
| Provided equipment | 1 instruction sheet |
| Offer type | Spare part |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
