MasterPact

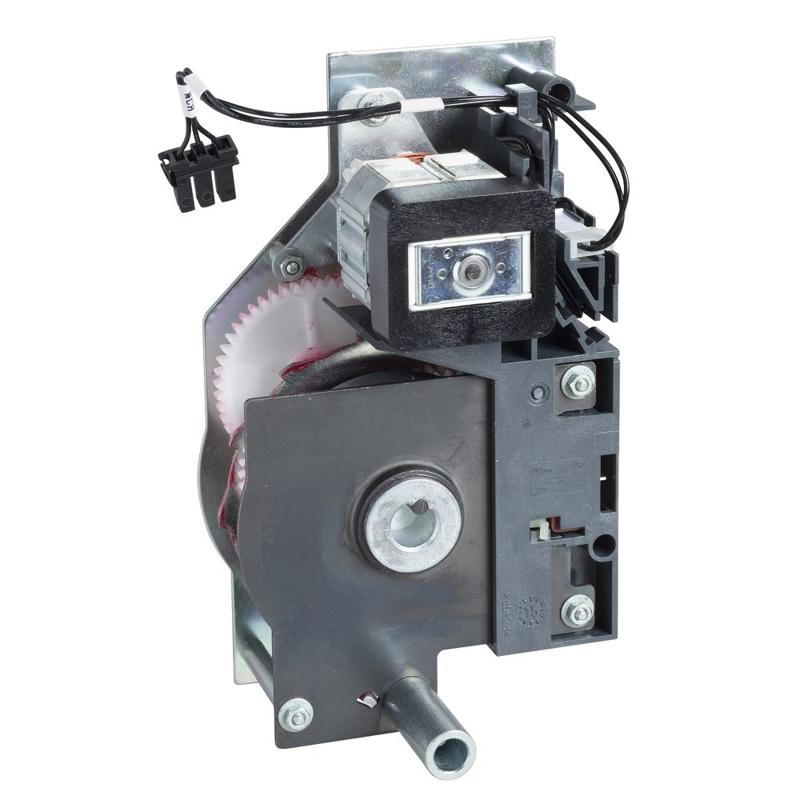

Schneider Electric catalog image for this SKU; may represent the product family.
MOTOR MECHANISM
Electric motor MCH, MasterPact MTZ2/MTZ3, remote operation, 200/240VAC 50/60Hz, spare part
SKU LV847894SPSchneider Electric LV847894SP is a motor mechanism in the MasterPact range. Key specifications include control voltage: 200...240 V AC 50/60 Hz; product range: MasterPact; product type: Motor mechanism.
200...240 V AC 50/60 HzControl voltage
MasterPactProduct range
Motor mechanismProduct type
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | LV847894SP |
|---|---|
| Range | MasterPact |
| Device short name | MCH |
| Product or component type | Motor mechanism |
| Device application | Control |
| Range compatibility | Masterpact MasterPact MTZ2 Masterpact MasterPact MTZ3 |
| Control type | Standard |
| [Uc] control circuit voltage | 200...240 V AC 50/60 Hz |
| Threshold tripping voltage | 0.85...1.1 Un |
| Maximum power consumption in VA | 180 VA |
| Overcurrent protection | 2...3 x In 0.1 s |
| Maximum charging time | 4 s |
| Maximum operating frequency | <= 3 cycles per minute |
| provided contact | Limit switch contact at 240 V 10 A |
| Provided equipment | 1 instruction sheet |
| Offer type | Spare part |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
