MasterPact

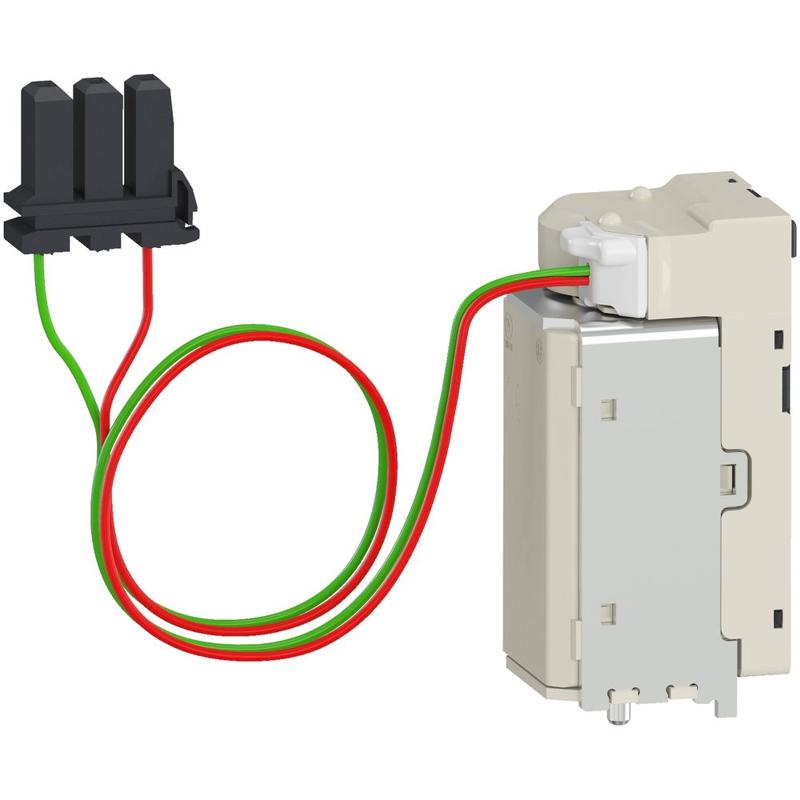

Schneider Electric catalog image for this SKU; may represent the product family.
UNDERVOLTAGE RELEASE
MN undervoltage release - 48 V AC/DC - for MTZ2/MTZ3 drawout
SKU LV848502Schneider Electric LV848502 is a undervoltage release in the MasterPact range. Key specifications include product range: MasterPact; product type: Undervoltage release; reference: LV848502.
MasterPactProduct range
Undervoltage releaseProduct type
LV848502Reference
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | LV848502 |
|---|---|
| Maximum response time | 95 ms on opening for MasterPact MTZ2 95 ms on opening for MasterPact MTZ3 |
| Range | MasterPact |
| Device short name | MN |
| Product or component type | Undervoltage release |
| Device application | Safety |
| Range compatibility | Masterpact MasterPact MTZ2 circuit breaker Masterpact MasterPact MTZ3 circuit breaker |
| Voltage release type | Instantaneous |
| Control type | Standard |
| [Un] voltage power supply | 48 V AC 50/60 Hz 48...60 V DC |
| Threshold tripping voltage | 0.35...0.7 Un opening 0.85 Un closing |
| Holding power consumption | 4.5 W |
| Circuit breaker mounting mode | Drawout |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
