MasterPact

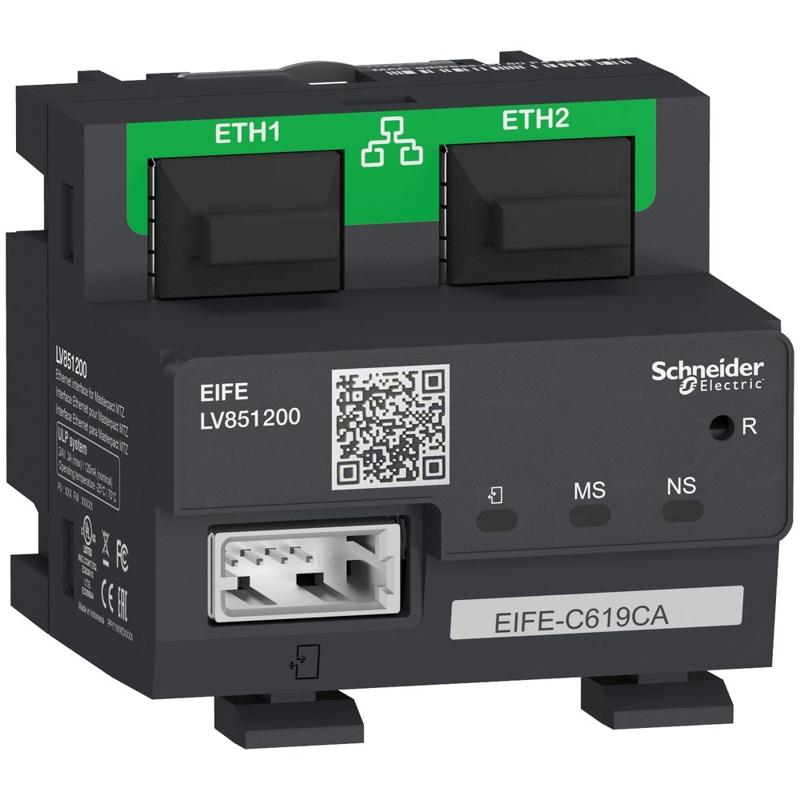

Schneider Electric catalog image for this SKU; may represent the product family.
ETHERNET INTERFACE MODULE
EIFE Ethernet module full kit - for MTZ2/MTZ3 drawout
SKU LV851200Schneider Electric LV851200 is a ethernet interface module in the MasterPact range. Key specifications include mounting support: DIN rail; ip protection: IP30; net weight: 0.075 kg.
DIN railMounting support
IP30IP protection
0.075 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | LV851200 |
|---|---|
| Range | MasterPact |
| Product or component type | Ethernet interface module |
| Condition of use | With specific accessories |
| Device application | Communication |
| Range compatibility | Masterpact MasterPact MTZ2 circuit breaker Masterpact MasterPact MTZ3 circuit breaker |
| Device mounting | Embedded |
| Communication gateway | Ethernet TCP/IP to Modbus |
| Communication network type | ULP, CANopen on USB Ethernet, Ethernet TCP/IP10/100 Mbps on RJ45 |
| Circuit breaker mounting mode | Drawout |
| Mounting support | DIN rail |
| Localisation on device | Chassis |
| Maximum supply current | 3 A |
| Power consumption in W | 72 W |
| Product certifications | CE FCC EAC |
| Standards | IEC 60950 IACS E10 IEC 60947-6-2 |
| Height | 51 mm |
| Width | 51 mm |
| Depth | 52.5 mm |
| Net weight | 0.075 kg |
| Web server | Embedded |
| IP degree of protection | IP30 |
| Ambient air temperature for operation | -20…70 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
