Linergy LGYE

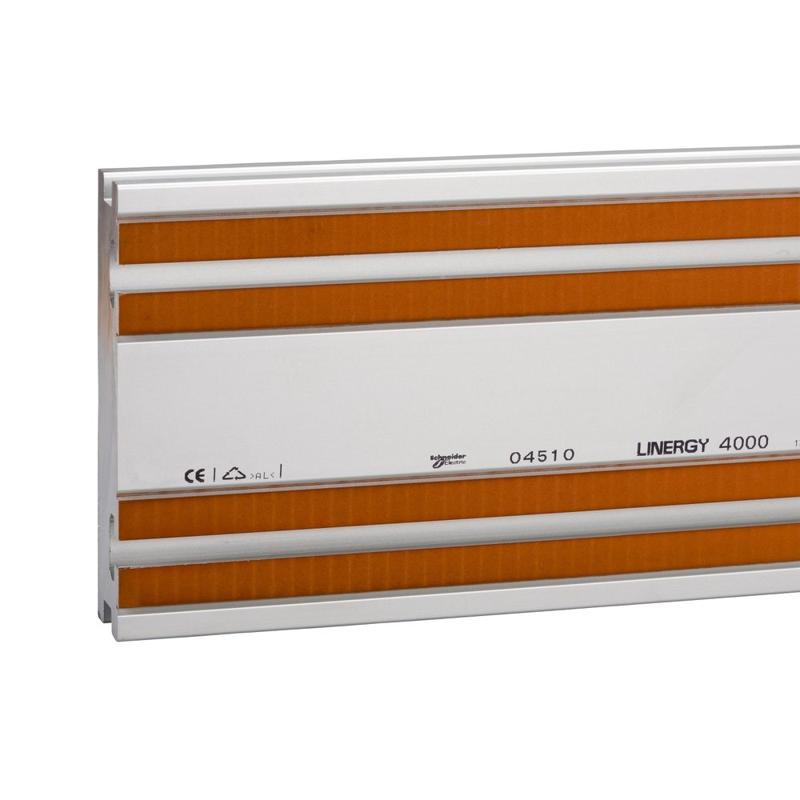

Schneider Electric catalog image for this SKU; may represent the product family.
PROFILE BUSBAR
LINERGY LGYE PROFILE 4000A LENGTH 2000MM
SKU LVS04568Schneider Electric LVS04568 is a profile busbar in the Linergy LGYE range. Key specifications include quantity per set: Set of 1; net weight: 22.26 kg; product range: Linergy LGYE.
Set of 1Quantity per set
22.26 kgNet weight
Linergy LGYEProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | LVS04568 |
|---|---|
| Range | Linergy |
| Range of product | Linergy |
| Product or component type | Profile busbar |
| Product name | Linergy LGYE |
| Range compatibility | PrismaSeT PrismaSeT P enclosure |
| Accessory / separate part category | Busbar accessory |
| Busbar description | Linergy |
| Quantity per set | Set of 1 |
| Installation direction | Horizontal, operating position: top Horizontal, operating position: bottom |
| installation description | Cubicle - width 650 mm Cubicle - width 650 + 150 mm Cubicle duct - width 300 mm Cubicle duct - width 400 mm |
| [Ui] rated insulation voltage | 1000 V |
| [Uimp] rated impulse withstand voltage | 12 kV (degree of pollution: 3) |
| [Ie] rated operational current | 4000 A |
| [Icw] rated short-time withstand current | 60 kA (1 s) for 2 supports (horizontal position) 85 kA (1 s) for 3 supports (horizontal position) 100 kA (1 s) for 4 supports (horizontal position) |
| Permissible current | 3620 A at 35 °C: <= IP31 3350 A at 35 °C: IP31 |
| Length | 2000 mm |
| Width | 150 mm |
| Depth | 31 mm |
| Net weight | 22.26 kg |
| Colour | Natural |
| Type of busbar connection | Double t-slot |
| Connection pitch | Free connection position |
| Standards | IEC 61439-2 IEC 61439-1 |
| Product certifications | ASTA |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
