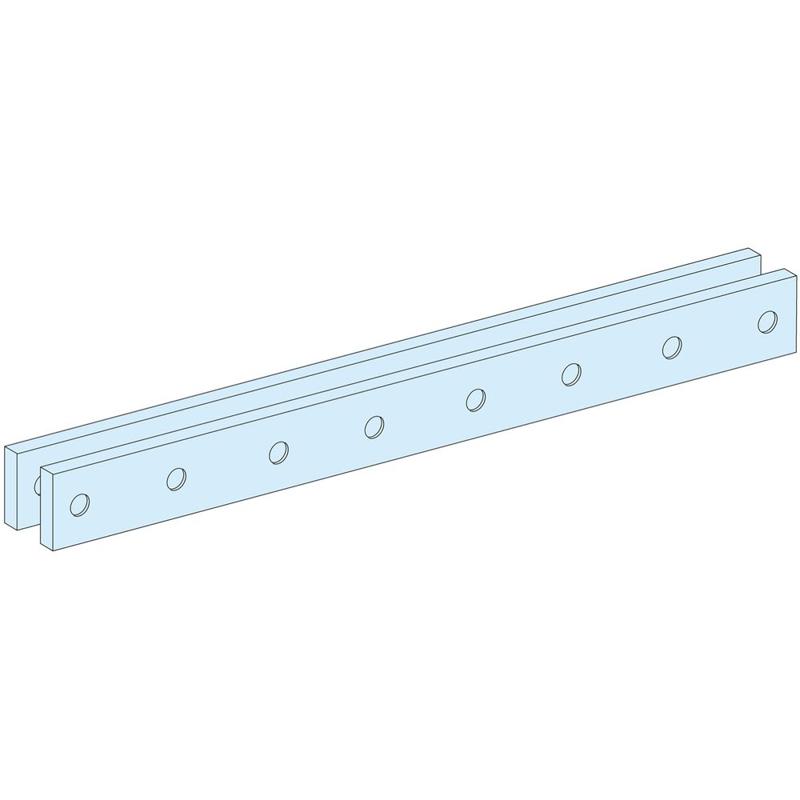

PrismaSeT P Schneider Electric Mounting flange, PrismaSeT P, for front busbar mounting in enclosure W650, manufacturer catalog image

Schneider Electric catalog image for this SKU; may represent the product family.

BUSBAR SUPPORT

Mounting flange, PrismaSeT P, for front busbar mounting in enclosure W650

Name: Mounting flange, PrismaSeT P, for front busbar mounting in enclosure W650
Brand: Schneider Electric
SKU: LVS04690

SKU LVS04690

Schneider Electric LVS04690 is a busbar support in the PrismaSeT P range. Key specifications include quantity per set: Set of 1; net weight: 0.8 kg; product range: PrismaSeT P.

Set of 1Quantity per set

0.8 kgNet weight

PrismaSeT PProduct range

Request a quote ↗View on Schneider Electric Technical specifications ↓

PRODUCT DATA

Technical specifications

Source: Schneider Electric product catalog.
Verified September 18, 2026.

LVS04690 — selected manufacturer specifications
Product reference	LVS04690
Range	PrismaSeT
Range of product	PrismaSeT P
Product or component type	Busbar support
Range compatibility	PrismaSeT PrismaSeT P enclosure PrismaSeT Prisma iPM M enclosure
Accessory / separate part category	Connection accessory
Product compatibility	Flat bar
Product destination	Busbar
Quantity per set	Set of 1
installation description	Cubicle - width 650 + 150 mm Cubicle - width 650 mm
Height	40 mm
Width	425 mm
Depth	10 mm
Net weight	0.8 kg
Colour	Natural

For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
