PrismaSeT G

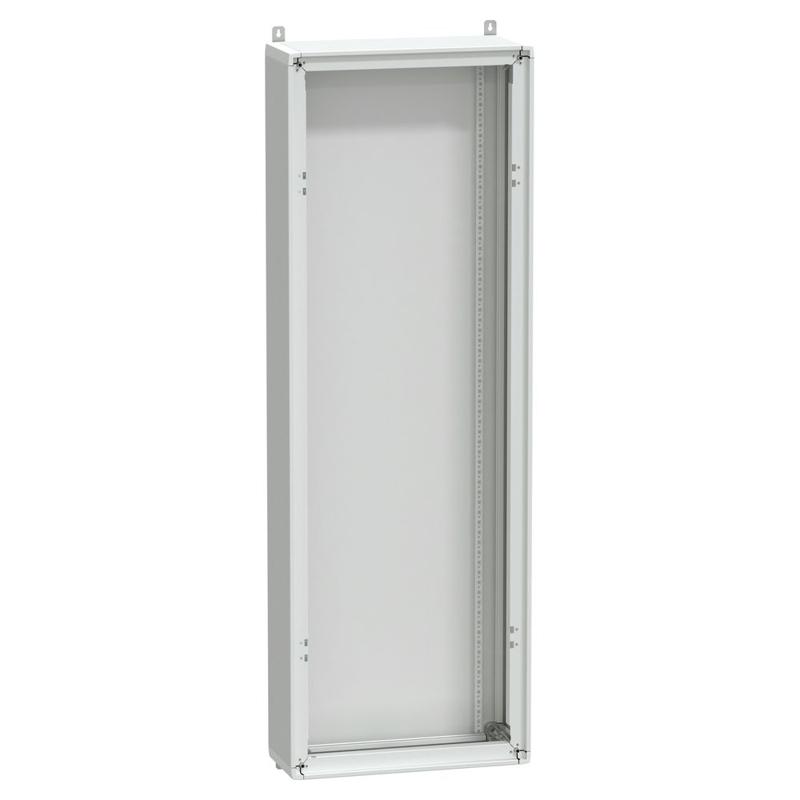

Schneider Electric catalog image for this SKU; may represent the product family.
ENCLOSURE
Wall mounted/floor standing enclosure, PrismaSeT G, W 600mm, H 1750mm (33M), IP55, without plinth
SKU LVS08309Schneider Electric LVS08309 is a enclosure in the PrismaSeT G range. Key specifications include rated current: 630 A at 40 °C conforming to IEC 61439-2; ip protection: IP55 with door; net weight: 31.2 kg.
630 A at 40 °C conforming to IEC 61439-2Rated current
IP55 with doorIP protection
31.2 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | LVS08309 |
|---|---|
| Range | PrismaSeT |
| Range of product | PrismaSeT G |
| Product or component type | Enclosure |
| Device application | Low voltage electrical distribution |
| Enclosure type | Functional enclosure delivered in kit form Weatherproof enclosure Metal enclosure Indoor enclosure |
| Enclosure/cubicle description | Floor-standing enclosure - width 600 mm |
| Kit composition | uprights rear plate 2 side panel top plate bottom plate 4 mouting bracket |
| Additional information | Can be combined side by side |
| type of front plate | Without to be ordered separately |
| Number of vertical modules [50 mm] | 33 |
| Number of 18 mm modules per row | 24 |
| Standards | IEC 61439-1 IEC 61439-2 IEC 62208 |
| Product certifications | ASTA EAC |
| [Ui] rated insulation voltage | 1000 V on main rear busbars conforming to IEC 61439-2 |
| Network frequency | 50/60 Hz |
| [In] rated current | 630 A at 40 °C conforming to IEC 61439-2 |
| Short-circuit current | 50 kA |
| [Icw] rated short-time withstand current | 25 kA 1 s conforming to IEC 61439-1 |
| [Ipk] rated peak withstand current | 53 kA conforming to IEC 61439-1 |
| Electrical insulation class | Class I |
| Material | Treated sheet steel |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish | Textured Matt |
| Colour | White (RAL 9003) |
| Width | 575 mm |
| Height | 1800 mm |
| Depth | 260 mm |
| Net weight | 31.2 kg |
| IP degree of protection | IP55 with door |
| IK degree of protection | IK10 with door conforming to EN/IEC 62262 |
| Mechanical robustness | Seismic tests - 2.5G conforming to IEC 60068-2-57 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
