PrismaSeT P

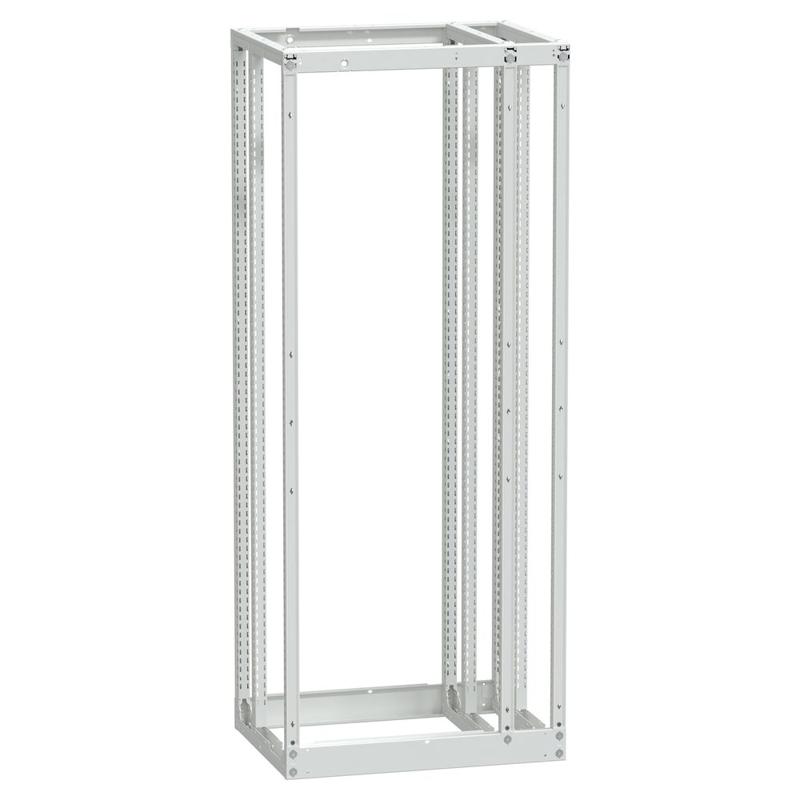

Schneider Electric catalog image for this SKU; may represent the product family.
FRAMEWORK
PrismaSet P Framework, W = 650+150 mm, D = 600 mm
SKU LVS08607Schneider Electric LVS08607 is a framework in the PrismaSeT P range. Key specifications include quantity per set: Set of 1; net weight: 34.36 kg; product range: PrismaSeT P.
Set of 1Quantity per set
34.36 kgNet weight
PrismaSeT PProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | LVS08607 |
|---|---|
| Range | PrismaSeT |
| Range of product | PrismaSeT P |
| Product or component type | Framework |
| Range compatibility | PrismaSeT PrismaSeT P cubicle |
| Provided equipment | Four cross-pieces Mounting hardware Side-by-side combination kit Two frames |
| Additional information | Can be combined side by side and back to back Busbar compartment can be on the left or right |
| Enclosure/cubicle description | Cubicle - width 650 + 150 mm |
| Quantity per set | Set of 1 |
| Height | 2000 mm |
| Width | 800 mm |
| Depth | 600 mm |
| Net weight | 34.36 kg |
| Surface finish | Matt Textured |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Standards | IEC 62208 |
| Mechanical robustness | Seismic tests structure reinforcement - 2G conforming to IEC 60068-2-57 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
