PacDrive 3

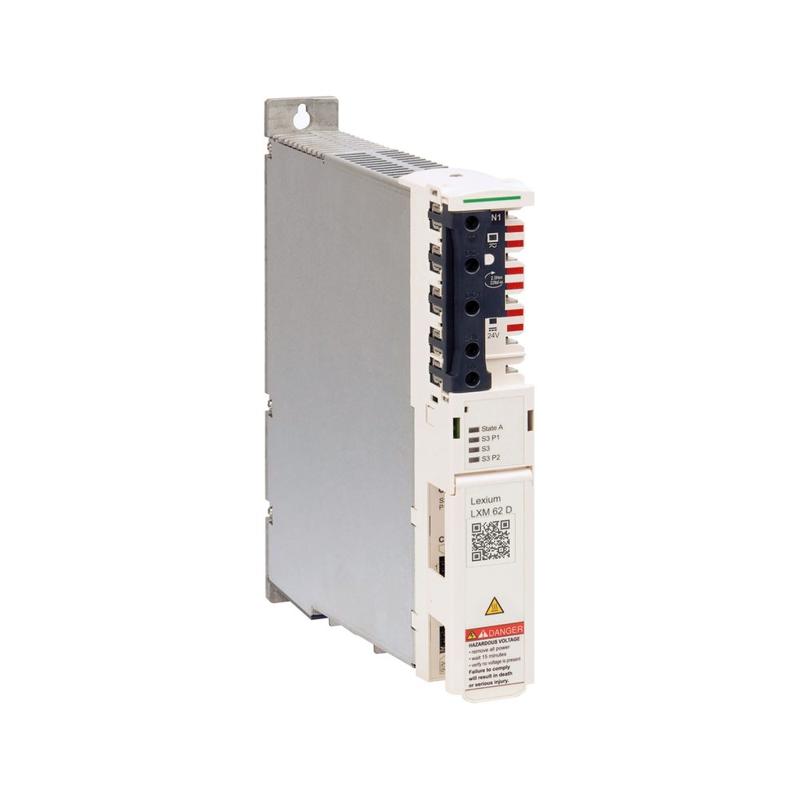

Schneider Electric catalog image for this SKU; may represent the product family.
SINGLE DRIVE
Lexium 62 Single Drive 27 A - accessory kit included
SKU LXM62DD27C21000Schneider Electric LXM62DD27C21000 is a single drive in the PacDrive 3 range. Key specifications include ip protection: IP20 conforming to IEC 60529; net weight: 3 kg; product range: PacDrive 3.
IP20 conforming to IEC 60529IP protection
3 kgNet weight
PacDrive 3Product range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | LXM62DD27C21000 |
|---|---|
| Range of product | PacDrive 3 |
| Device short name | LXM 62 |
| Product or component type | Single drive |
| Component name | LXM62 |
| Product compatibility | Servo motor SHS Servo motor SH3 (100 mm, 3 motor stacks)optimized in terms of torque and speed Servo motor SH3 (100 mm, 4 motor stacks)optimized in terms of torque and speed Servo motor SH3 (140 mm, 1 motor stacks)optimized in terms of torque and speed Servo motor MH3 (100 mm, 2 motor stacks)optimized in terms of torque and speed |
| Network number of phases | Three phase |
| [Us] rated supply voltage | 400 V (- 10...10 %) for three phase 230 V (- 10...10 %) for three phase 230 V (- 10...10 %) for single phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Continuous output current | 9 A at 4 kHz |
| Output current 3s peak | 27 A at 4 kHz |
| Continuous power | 4.3 kW |
| Nominal power | 4.3 kW |
| Switching frequency | 8 kHz |
| Overvoltage category | III |
| Electrical connection | Terminal, clamping capacity: 0.2...15 mm², 24 AWG...16 AWG (CN4) Terminal, clamping capacity: 0.5...16 mm², 20 AWG...6 AWG (CN5) Terminal, clamping capacity: 0.75...16 mm², 18 AWG...6 AWG (CN6) Terminal, clamping capacity: 0.2...6 mm², 24 AWG...10 AWG (CN7) |
| Tightening torque | CN1: 2.5 N.m |
| Number of inputs | 2 digital 2 touch probe |
| Discrete input voltage | 24 V DC for - 20...25 % |
| Number of outputs | 2 digital |
| Discrete output voltage | 24 V DC |
| Safety function | STO (safe torque off) |
| Communication interface | SERCOS III, integrated |
| Depth | 270 mm |
| Height | 310 mm |
| Width | 44.5 mm |
| Net weight | 3 kg |
| Standards | IEC 61800-5-2 UL 508C IEC 61508 ISO 13849-1 CSA C22.2 No 14 IEC 62061 IEC 61800-3 IEC 61800-5-1 ISO 13849-2 |
| Product certifications | TÜV UL EAC CSA CE |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Vibration resistance | 10 m/s² conforming to IEC 60721-3-3 |
| Shock resistance | 100 m/s² conforming to IEC 60721-3-3 |
| Pollution degree | 2 conforming to IEC 61800-5-2 |
| Environmental characteristic | 3K3 conforming to IEC 60721-3-3 |
| Relative humidity | 5…85 % |
| Ambient air temperature for operation | 5…55 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
