Panel Server Universal

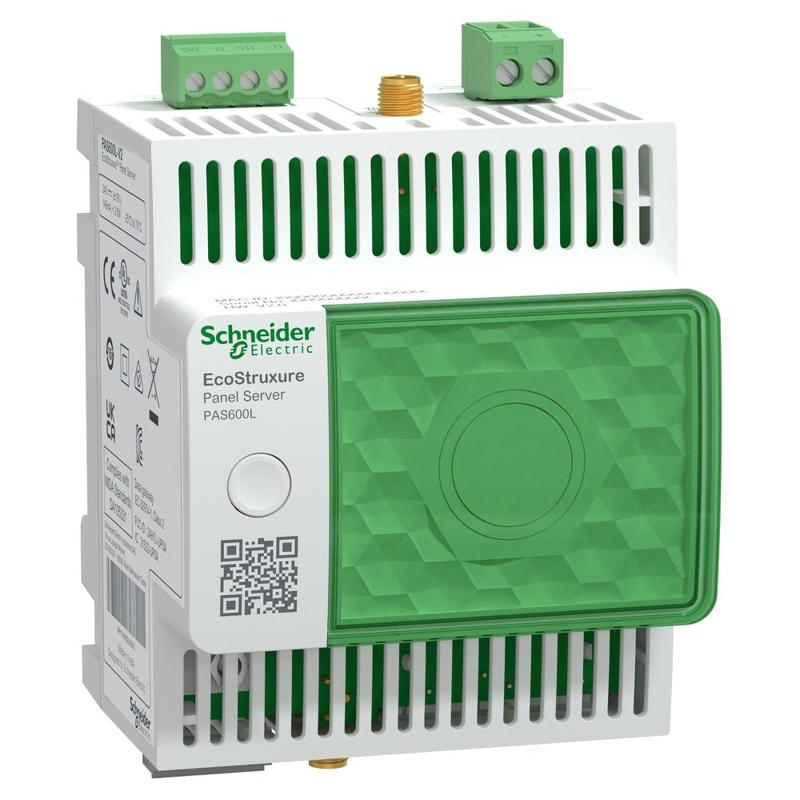

Schneider Electric catalog image for this SKU; may represent the product family.
GATEWAY
EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC
SKU PAS600LSchneider Electric PAS600L is a gateway in the Panel Server Universal range. Key specifications include mounting mode: Clip-on; mounting support: DIN rail; ip protection: IP40 (front face).
Clip-onMounting mode
DIN railMounting support
IP40 (front face)IP protection
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | PAS600L |
|---|---|
| Range | EcoStruxure |
| Product name | Panel Server Universal |
| Product or component type | Gateway |
| Device short name | PAS600L |
| Device application | Gateway |
| [Us] rated supply voltage | 24 V DC |
| Communication gateway | Ethernet TCP/IP to wireless devices Ethernet/serial |
| Product compatibility | Wireless access point |
| Maximum power consumption in W | HW V2: 3.5 W 24 V HW V1: 3 W 24 V |
| Communication network type | HW V2: Wi-Fi infrastructure5 GHz HW V2: Wi-Fi infrastructure2.4 GHz HW V1: Wi-Fi infrastructure2.4 GHz Ethernet 10/100BASE-T Wi-Fi access point2.4 GHz Wireless IEEE 802.15.4 Modbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s |
| Communication port protocol | Modbus TCP DHCP HTTPS NTP/SNTP IPv4 IPv6 TCP/IP |
| Communication port support | 2 RJ45: ETHERNET Screw terminal block: RS485 |
| Number of server device(s) | 32 Modbus RTU product(s) 128 Modbus TCP/IP product(s) 40 wireless (IEEE 802.15.4) product(s) - mixed 85 wireless (IEEE 802.15.4) product(s) - depending on configuration |
| Number of devices | 64 Modbus TCP/IP |
| Memory capacity | HW V2: 32 GB eMMC HW V1: 512 MB NAND |
| Number of inputs | 2 digital |
| Connections - terminals | Discrete I/O: screw terminal block (top) 0.14…1.5 mm² cable(s) Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s) Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s) |
| Tightening torque | Discrete I/O: 0.25 N.m Power supply: 0.6 N.m Communication: 0.25 N.m |
| Wire stripping length | Power supply: 7 mm Communication: 7 mm Discrete I/O: 7 mm |
| Number of connectors | HW V2: 2 screw connector for Wi-Fi and IEEE 802.15.4 HW V1: 1 screw connector for Wi-Fi |
| Connector type | HW V2: connector(s)1 x RP-SMA Wi-Fi for antenna bottom HW V2: connector(s)1 x RP-SMA IEEE 802.15.4 for antenna top HW V1: connector(s)1 x RP-SMA Wi-Fi for antenna bottom |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Product certifications | CE cULus CB RCM UKCA FCC IC DNV Marine ANSI RF IACS E10 |
| Standards | IEC 61010 IEC 61010-1 IEC 61010-2-201 UL 61010 UL 61010-1 UL 61010-2-201 EN 61010-1 EN 61010-2-201 CAN/CSA C22.2 No. 61010-1-12 CAN/CSA C22.2 No. 61010-2-201 IEC 62974-1 IEC 61326-1 EN 61326-1 ETSI EN 301 489-1 ETSI EN 301 489-17 EN 301-893 EN 55032 CISPR 11 ETSI EN 300 328 IEEE 802.15.4 IEEE 802.11a/b/g/n IEEE 802.3 af/at FCC CFR 47 part 15 class A EN 62311 IEC 62311 ANSI C63.10 IEC 60945 EN 62974-1 DNVGL-GC-0339 |
| Depth | 70.2 mm |
| Height | 93 mm |
| Width | 72 mm |
| Net weight | 181 g |
| Data recording | Real time data monitoring |
| Data buffer for data publication (cloud, SFTP, HTTPS) depending on network | 1 month(s) |
| Function available | Embedded web page for configuration and upgrade Diagnosis capabilities Diagnostic report Diagnostics on communication Energy management With integrated web server Firmware update Backup/restore configuration Configurable event |
| Product specific application | Wireless Schneider Electric devices ecosystem |
| Topology | Separated Ethernet network Switched Ethernet network |
| Web services | HTTPS server SFTP publication (CSV / JSON) HTTPS publication (CSV / JSON) |
| Communication service | Device Profile for Web Services (DPWS) Modbus TCP client Modbus TCP server SNTP client DHCP client RSTP |
| Commissioning interface | EcoStruxure Power Commission desktop EcoStruxure Power Commission Mobile (through Wi-Fi Access point) EcoStruxure Power Commission web (for third party device integration) Web page |
| Realtime clock | With RTC-battery set With user calibration |
| Time synchronisation protocol | NTP SNTP |
| Range compatibility | EcoStruxure Facility Expert EcoStruxure Building Operation EcoStruxure Power Operation EcoStruxure Power Monitoring Expert EcoStruxure Asset Advisor EcoStruxure Energy Hub EcoStruxure Resource Advisor Third party SCADA |
| Communication iinterface | Modbus and wireless (IEEE802.15.4) product |
| Relative humidity | 5…95 % |
| IP degree of protection | IP40 (front face) IP20 (casing) |
| Ambient air temperature for operation | -25…70 °C at < 2000 m -25…60 °C at 2000...4000 m |
| Derating factor | With temperature derating of -1 °C per 200 m 4000...5000 m |
| Ambient air temperature for storage | -40…85 °C |
| Pollution degree | 3 |
| Operating altitude | < 5000 m |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
