Harmony Electromechanical Relays

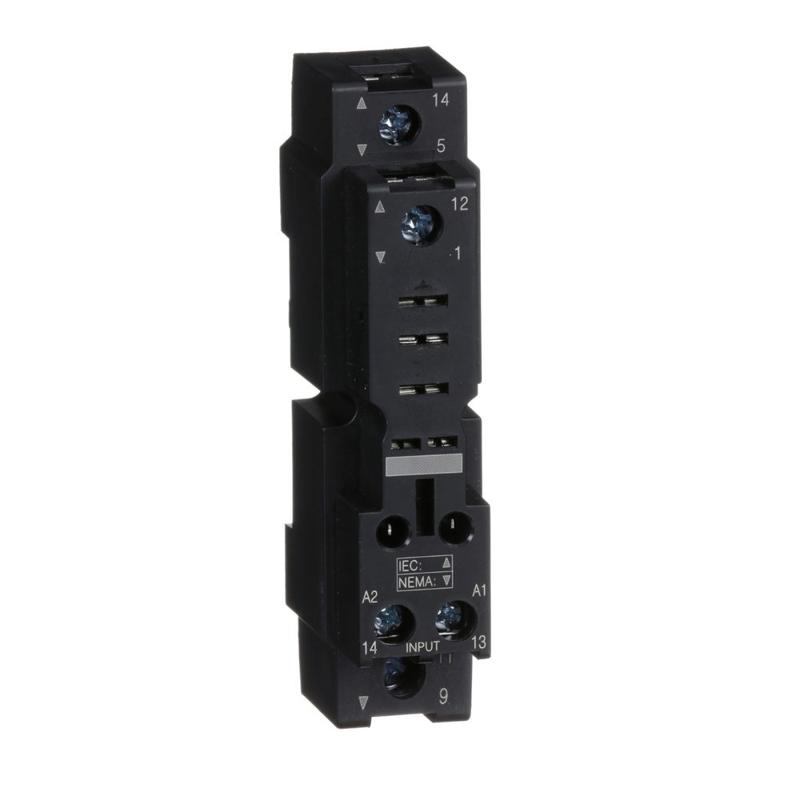

Schneider Electric catalog image for this SKU; may represent the product family.
SOCKET
Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM1 relays
SKU RPZF1Schneider Electric RPZF1 is a socket in the Harmony Electromechanical Relays range. Key specifications include ip protection: IP20 conforming to IEC 60529; operational voltage: 250 V; net weight: 0.031 kg.
IP20 conforming to IEC 60529IP protection
250 VOperational voltage
0.031 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | RPZF1 |
|---|---|
| Range of product | Harmony Electromechanical Relays |
| Device short name | RPZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RPM with 1 C/O contact |
| Contacts type and composition | 1 C/O |
| [Ith] conventional free air thermal current | 16 A |
| [Ue] rated operational voltage | 250 V |
| Contact terminal arrangement | Mixed |
| Tightening torque | < 1 N.m for M3.5 screw(s) < 0.8 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Net weight | 0.031 kg |
| Connections - terminals | Contact terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...4 mm² / 20 AWG...12 AWG Contact terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...4 mm² / 20 AWG...12 AWG Contact terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...2.5 mm² / 20 AWG...14 AWG Contact terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...2.5 mm² / 20 AWG...14 AWG Coil terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...2.5 mm² / 20 AWG...14 AWG Coil terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...2.5 mm² / 20 AWG...14 AWG Coil terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...1.5 mm² / 20 AWG...16 AWG Coil terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...1.5 mm² / 20 AWG...16 AWG |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 CSA C22.2 No 14 UL 508 |
| Product certifications | CSA UL EAC CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
