Harmony Electromechanical Relays

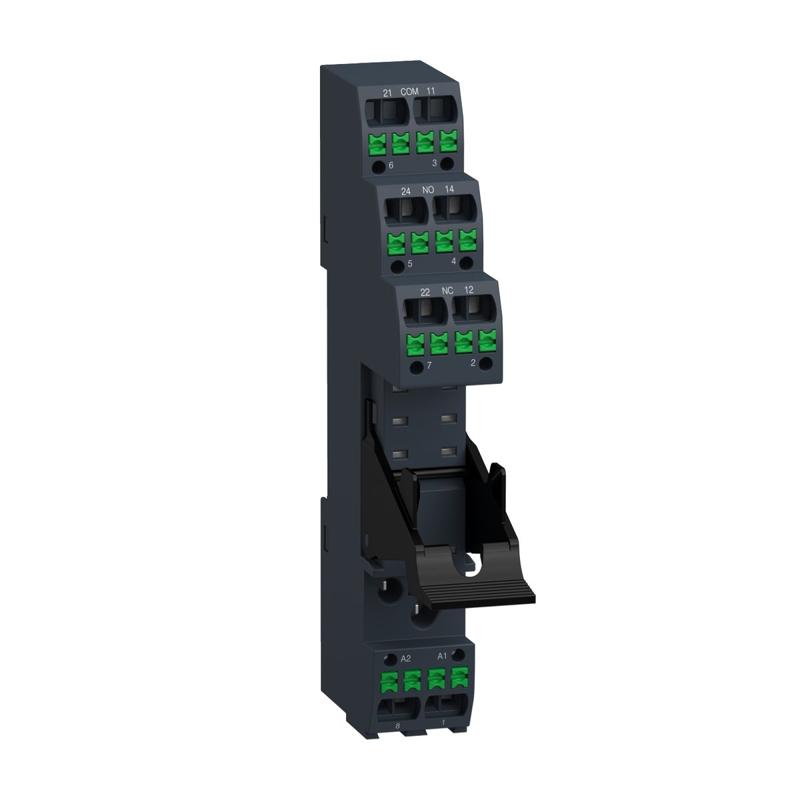

Schneider Electric catalog image for this SKU; may represent the product family.
SOCKET
Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact
SKU RSZE08PSchneider Electric RSZE08P is a socket in the Harmony Electromechanical Relays range. Key specifications include ip protection: IP20; operational voltage: 250 V conforming to IEC; net weight: 0.042 kg.
IP20IP protection
250 V conforming to IECOperational voltage
0.042 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 06, 2026.
| Product reference | RSZE08P |
|---|---|
| Range of product | Harmony Electromechanical Relays |
| Device short name | RSZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RSB with 1 C/O contact at 16 A Plug-in relay RSB with 2 C/O contact at 8 A |
| Contacts type and composition | 2 C/O |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 250 V |
| Shape of pin | Flat |
| [Ue] rated operational voltage | 250 V conforming to IEC 300 V conforming to UL |
| Contact terminal arrangement | Separate |
| Connections - terminals | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) flexible with cable end Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) solid without cable end |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Length | 98 mm |
| Width | 16 mm |
| Height | 60 mm |
| Net weight | 0.042 kg |
| IP degree of protection | IP20 |
| Standards | IEC 61984 |
| Product certifications | CSA UL EAC |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…85 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
