Harmony Electromechanical Relays

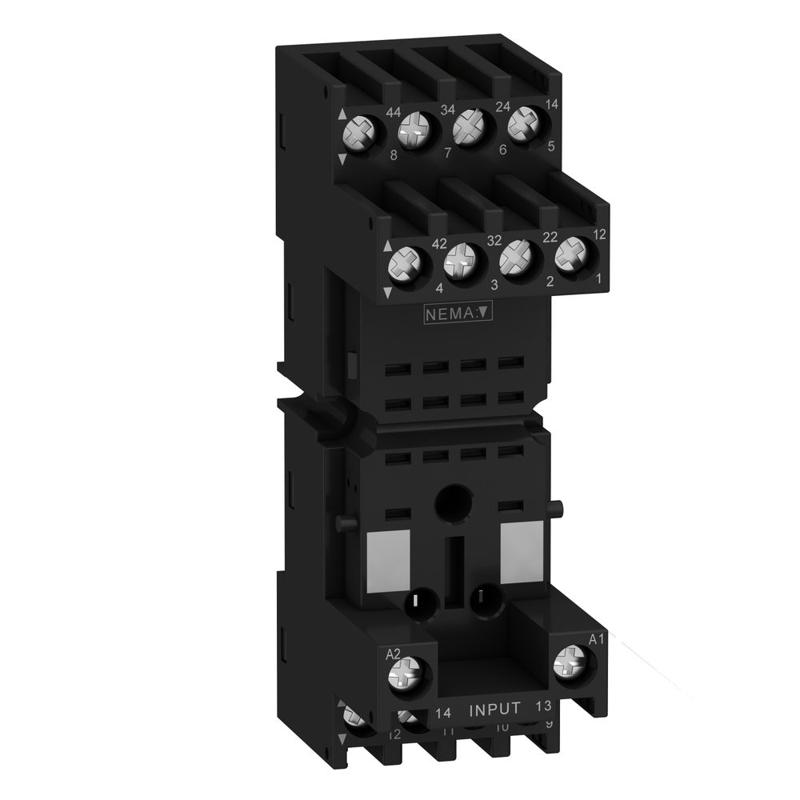

Schneider Electric catalog image for this SKU; may represent the product family.
SOCKET
Soket, Harmony Elektromekanik Röleler, Rxm2 Rxm4 Röleler için, Rs'Ye Vida Bağlantısı, Karışık Kontak
SKU RXZE2M114MSchneider Electric RXZE2M114M is a socket in the Harmony Electromechanical Relays range. Key specifications include ip protection: IP20 conforming to IEC 60529; operational voltage: < 250 V conforming to IEC; net weight: 0.055 kg.
IP20 conforming to IEC 60529IP protection
< 250 V conforming to IECOperational voltage
0.055 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | RXZE2M114M |
|---|---|
| Range of product | Harmony Electromechanical Relays Harmony Timer Relays |
| Product compatibility | Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact Plug-in relay REXL with 2 C/O contact Plug-in relay REXL with 4 C/O contact Plug-in relay 782H with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 10 A |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| [Ue] rated operational voltage | < 250 V conforming to IEC < 300 V conforming to UL |
| Connections - terminals | Screw connectors, 1 x 0.34...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end Screw connectors, 2 x 0.34...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end Screw connectors, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end Screw connectors, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end |
| Shape of pin | Flat |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 8 mm |
| Contact terminal arrangement | Mixed |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 27 mm |
| Net weight | 0.055 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | UL CSA Lloyd's |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
