ABBSR2-SRN3215K

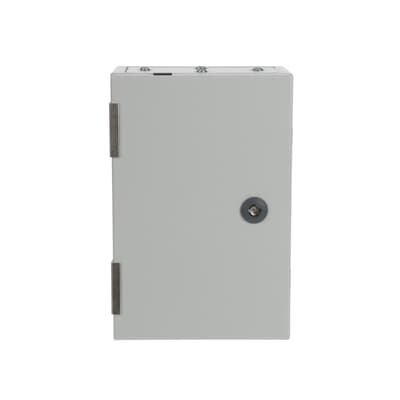

ABB catalog image for this SKU; may represent the product family.
EMPTY CABINET
SR2-SRN3215K
SKU SRN3215KABB SR2-SRN3215K: Empty cabinet.
SR2-SRN3215KProduct range
Empty cabinetProduct type
SRN3215KReference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | SRN3215K |
|---|---|
| Catalog Description | ENCLOSURE BL.DOOR+PLATE300X200X150 7035 |
| Environmental Product Declaration - EPD | 9AKK108470A6068 |
| Suitable for Product Class | SR2 |
| Number of Flange Openings | 2 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type3R |
| Door Type | Single |
| Construction Material | Galvanized steel |
| Door Surface Finishing | Opaque |
| Accessories Available | Yes |
| Surface Finishing | Powder coating |
| Housing Material | Steel |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| RoHS Declaration | 9AKK108468A2382 |
| RoHS Information | No declaration needed |
| RoHS Date | 20221015 |
| REACH Declaration | 9AKK108469A7731 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Degree of Protection | IP65 |
| Protection Class | Grounded (Class I) |
| Environmental Information | 1STC804013D0203 |
| Product Net Width | 200 mm |
| Product Net Height | 300 mm |
| Product Net Depth / Length | 150 mm |
| Product Net Weight | 4.25 kg |
| Built-In Depth (t2) | 82 mm |
| Thickness | Cabinet Plate 1.2 mm Door Plate 1.2 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 0.215 m |
| Package Level 1 Height | 0.170 m |
| Package Level 1 Depth / Length | 0.320 m |
| Package Level 1 Gross Weight | 4.800 kg |
| Package Level 1 EAN | 8015646753151 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 9AKK108468A2382 |
| Instructions and Manuals | 1STM6041230001 |
| Data Sheet, Technical Information | 9AKK107991A8329 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
