COMPLETE SELECTOR SWITCH

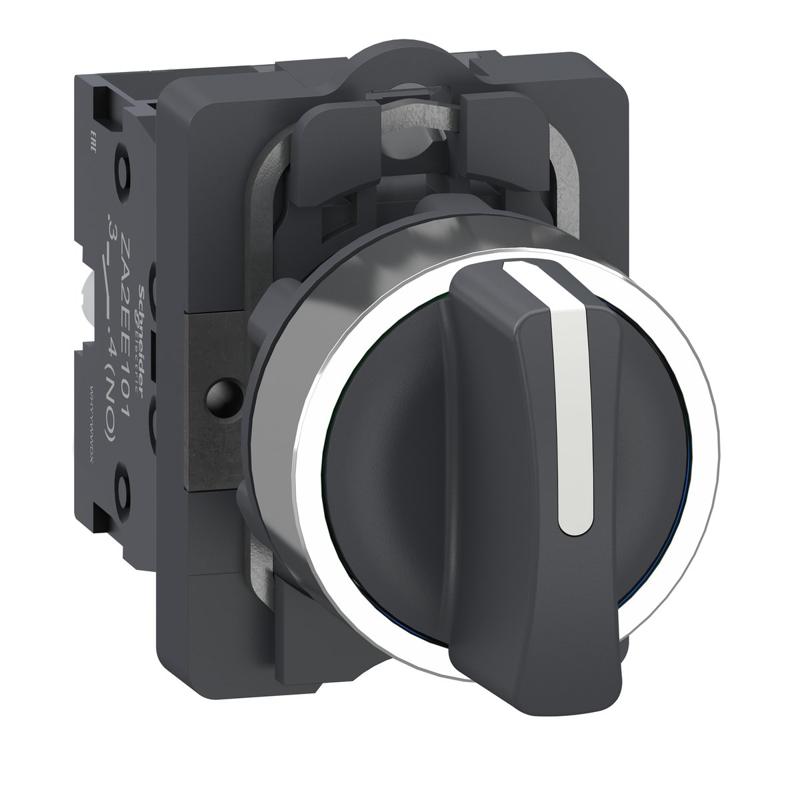

Complete selector switch, Easy Harmony XA2, plastic short handle, 22mm, 3-position, 2NO, spring return, black
SKU XA2AD53Schneider Electric XA2AD53 is a complete selector switch in the Harmony XA2 range. Key specifications include operational current: 3 A at 240 V, AC-15, A600; ip protection: IP65 conforming to IEC 60529; net weight: 0.053 kg.
3 A at 240 V, AC-15, A600Operational current
IP65 conforming to IEC 60529IP protection
0.053 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 17, 2026.
| Product reference | XA2AD53 |
|---|---|
| Range of product | Harmony XA2 |
| Device short name | XA2 |
| Product or component type | Complete selector switch |
| Device presentation | Complete product |
| Component name | XA2A |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Return | Both sides to centre |
| Shape of signaling unit head | Round |
| Operator profile | Black standard handle (white) |
| Operator position information | 3 positions 45° |
| Contacts type and composition | 2 NO |
| Contact operation | Slow-break |
| Mechanical durability | 300000 cycles |
| Connections - terminals | Screw clamp terminal, clamping capacity: <= 2 x 1.5 mm² Screw clamp terminal, clamping capacity: <= 1 x 2.5 mm² Screw clamp terminal, clamping capacity: >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8…1.2 N.m |
| Short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Electrical reliability | Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4 |
| Width | 30.0 mm |
| Height | 43.0 mm |
| Depth | 70.0 mm |
| Net weight | 0.053 kg |
| Type of operator | Spring return |
| Head type | Standard |
| Cap/operator or lens colour | Black |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK06 conforming to IEC 60529 |
| Standards | GB 14048.1 IEC 60947-1 GB 14048.5 IEC 60947-5-1 |
| Product certifications | CCC CE UKCA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
