Harmony XAC

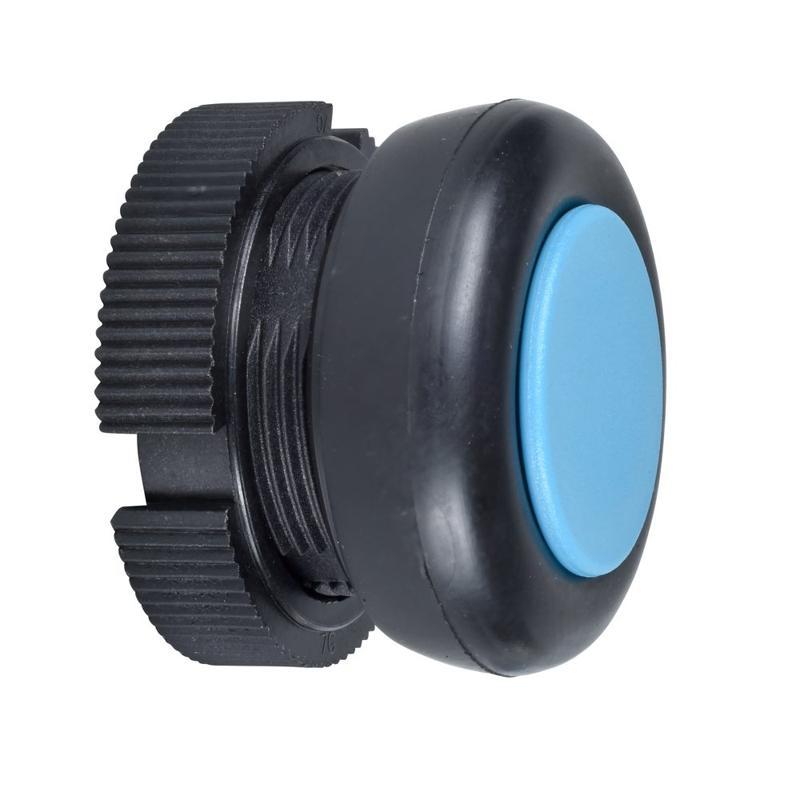

Schneider Electric catalog image for this SKU; may represent the product family.
HEAD FOR PUSH-BUTTON
Harmony XAC, Push button head, plastic, blue, booted, spring return
SKU XACA9416Schneider Electric XACA9416 is a head for push-button in the Harmony XAC range. Key specifications include ip protection: IP65 conforming to IEC 60529; net weight: 0.01 kg; product range: Harmony XAC.
IP65 conforming to IEC 60529IP protection
0.01 kgNet weight
Harmony XACProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | XACA9416 |
|---|---|
| Range of product | Harmony XAC |
| Product or component type | Head for push-button |
| Component name | XACA |
| Marking | Unmarked |
| Operator additional information | Booted |
| Cap/operator or lens colour | Blue |
| Product compatibility | XACA.. |
| Mounting location | Front of enclosure |
| Sale per indivisible quantity | 10 |
| Standards | UL 508 IEC 60204-32 IEC 60947-5-1 CSA C22.2 No 14 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Net weight | 0.01 kg |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
