Harmony XAC

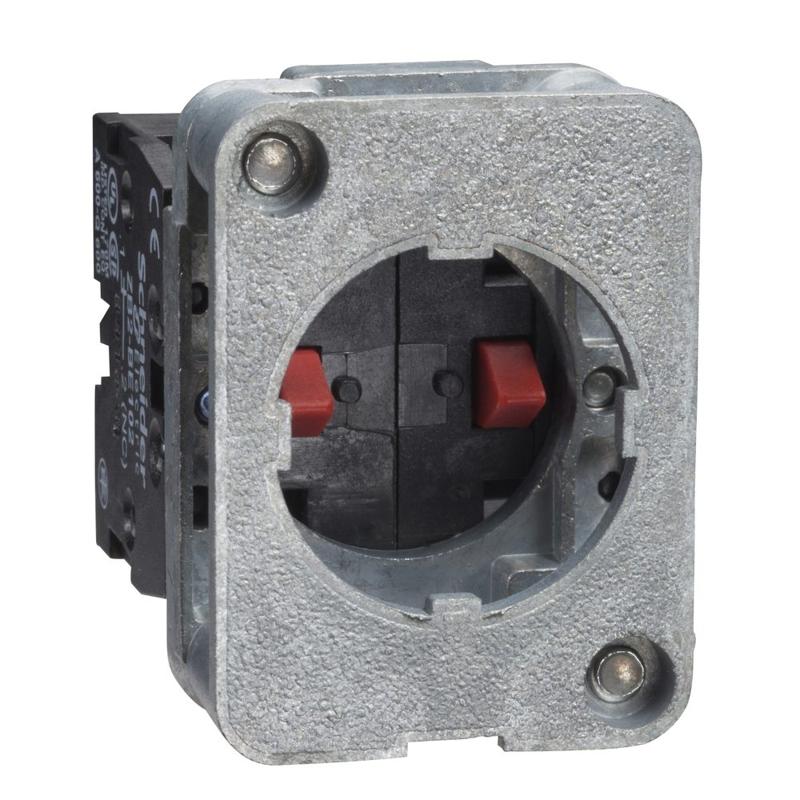

Schneider Electric catalog image for this SKU; may represent the product family.
CONTACT BLOCK
spring return contact block - 2 NO - front mounting, 30 or 40 mm centres
SKU XACS413Schneider Electric XACS413 is a contact block in the Harmony XAC range. Key specifications include net weight: 0.07 kg; product range: Harmony XAC; product type: Contact block.
0.07 kgNet weight
Harmony XACProduct range
Contact blockProduct type
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | XACS413 |
|---|---|
| Range of product | Harmony XAC |
| Product or component type | Contact block |
| Component name | XACS |
| Electrical circuit type | Control circuit |
| Contact block type | Single |
| Type of operator | Spring return |
| Product compatibility | ZA2B... head XACA |
| Mechanical interlocking | Without mechanical interlock |
| Contacts type and composition | 2 NO |
| Mounting of block | Front mounting |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, 1 x 2.5 mm² with or without cable end Screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Horizontal fixing centres | 40 mm |
| Vertical fixing centres | 30 mm |
| Mechanical durability | 1000000 cycles |
| Contact code designation | A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W | 42 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 45 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 60 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Rated operational power in VA | 140 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load) 385 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load) 455 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load) 525 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load) |
| Terminals description ISO n°1 | (23-24)NO (13-14)NO |
| Terminal identifier | (13-14)NO (11-12)NC |
| Net weight | 0.07 kg |
| Standards | CSA C22.2 No 14 IEC 60947-5-1 IEC 60947-5-1 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
