Harmony XALD

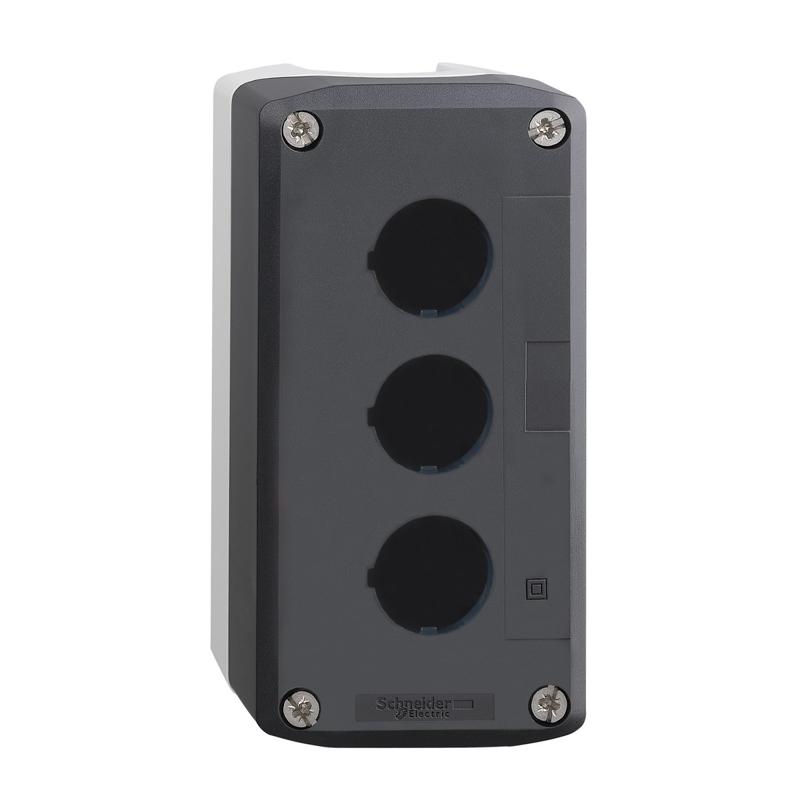

Schneider Electric catalog image for this SKU; may represent the product family.
EMPTY CONTROL STATION
dark grey empty enclosure lid with light grey base - 3 cut-outs
SKU XALD03Schneider Electric XALD03 is a empty control station in the Harmony XALD range. Key specifications include ip protection: IP66 conforming to IEC 60529; net weight: 0.238 kg; product range: Harmony XALD.
IP66 conforming to IEC 60529IP protection
0.238 kgNet weight
Harmony XALDProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 17, 2026.
| Product reference | XALD03 |
|---|---|
| Range of product | Harmony XALD |
| Product or component type | Empty control station |
| Device short name | XALD |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Number of cut-out | 3 cut-outs |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Dark grey (RAL 7016) |
| Material | Polycarbonate |
| Cable entry | 2 knock-outs for cable entry, clamping capacity: 14 mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| Assembly style | For customer assembly |
| Number of horizontal rows | 1 |
| Number of vertical rows | 3 |
| Net weight | 0.238 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Mounting of block | Rear mounting Front mounting |
| electrical composition code | SF1 MF2 PF2 PF1 MR1 MF1 SF2 SR1 SR2 PR1 |
| Main group | 3 cut-outs |
| Group of product | Standard grey |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 62262 |
| Standards | IEC 60947-1 CSA C22.2 No 14 UL 508 IEC 60947-5-5 IEC 60947-5-1 IEC 60947-5-4 JIS C8201-5-1 JIS C8201-1 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
