Harmony XB5

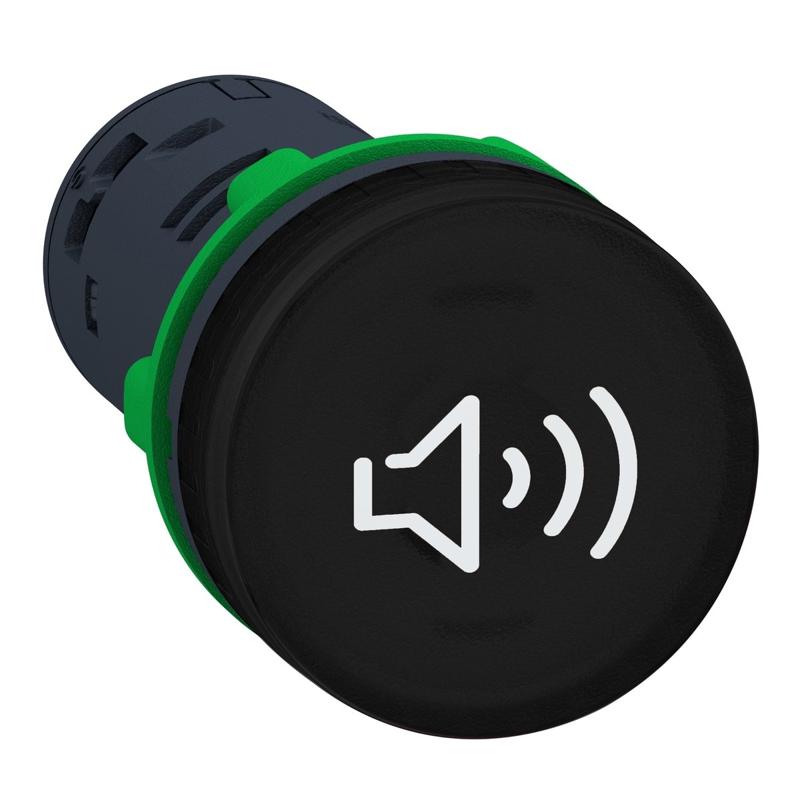

Schneider Electric catalog image for this SKU; may represent the product family.
ANNUNCIATOR
Harmony XB5, Complete buzzer, plastic, Ø22, continuous or intermittent tone, 230…240 V AC
SKU XB5KSMSchneider Electric XB5KSM is a annunciator in the Harmony XB5 range. Key specifications include net weight: 0.024 kg; product range: Harmony XB5; product type: Annunciator.
0.024 kgNet weight
Harmony XB5Product range
AnnunciatorProduct type
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | XB5KSM |
|---|---|
| Range of product | Harmony XB5 |
| Product or component type | Annunciator |
| Bezel material | Dark grey plastic |
| Mounting diameter | 22 mm |
| Head type | Standard |
| Cap/operator or lens colour | Black |
| Supply circuit type | AC |
| Supply frequency | 50 Hz |
| Signalling type | Continuous or intermittent tone |
| Noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Resistance to high pressure washer | 9000000 Pa at 80 °C, distance : 0.1 m |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 55 mm |
| Net weight | 0.024 kg |
| Current consumption | <= 18 mA |
| [Us] rated supply voltage | 230...240 V +/- 10 % |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| Enclosure Type | UL type 4X/13 |
| Standards | UL 508 JIS C8201-5-1 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-4 IEC 60947-1 JIS C8201-1 IEC 60529 IEC 62262 IEC 50102 |
| Product certifications | UL listed CSA BV |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
