Harmony XB6E

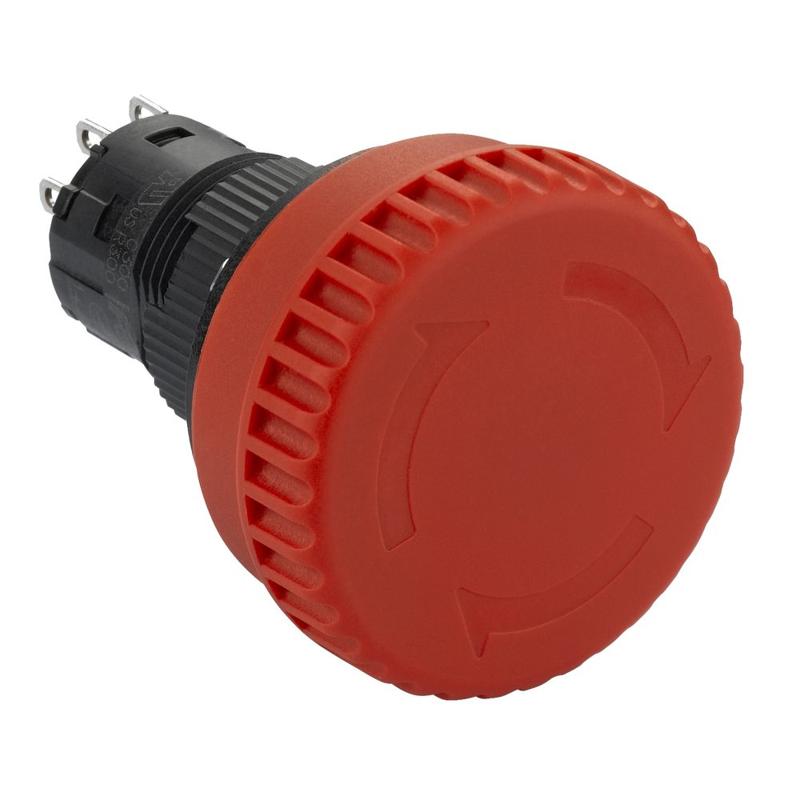

Schneider Electric catalog image for this SKU; may represent the product family.
COMPLETE EMERGENCY STOP PUSH-BUTTON
red Emergency stop Ø 16 - mushroom head Ø 24 - turn to release
SKU XB6EAS842PSchneider Electric XB6EAS842P is a complete emergency stop push-button in the Harmony XB6E range. Key specifications include ip protection: IP65 conforming to IEC 60529; net weight: 0.018 kg; product range: Harmony XB6E.
IP65 conforming to IEC 60529IP protection
0.018 kgNet weight
Harmony XB6EProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | XB6EAS842P |
|---|---|
| Range of product | Harmony XB6E |
| Product or component type | Complete emergency stop push-button |
| Device short name | XB6E |
| Bezel material | Plastic |
| Mounting diameter | 16 mm |
| Sale per indivisible quantity | 5 |
| Shape of signaling unit head | Round |
| Type of operator | trigger action and mechanical latching |
| Reset | Turn to release |
| Operator profile | Red mushroom Ø 24 mm |
| Contacts type and composition | 2 NC |
| Contact operation | Slow-break |
| Connections - terminals | Soldered connectors |
| CAD overall width | 25 mm |
| CAD overall height | 25 mm |
| CAD overall depth | 54 mm |
| Terminals description ISO n°1 | (31-32)NC (21-22)NC |
| Net weight | 0.018 kg |
| Operating position | Any position |
| Marking | CE |
| Contacts usage | Standard |
| Positive opening | With conforming to EN/IEC 60947-5-1 appendix K |
| Operating travel | 1 mm (NC changing electrical state) 3.5 mm (total travel) |
| Operating force | 4.5 N NC changing electrical state |
| Mechanical durability | 100000 cycles |
| Contacts material | Gold-flashed silver |
| Short-circuit protection | 6 A cartridge fuse type gG |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 |
| [Ie] rated operational current | 3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1 1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4 |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…55 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | II conforming to IEC 60536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| NEMA degree of protection | NEMA 13 conforming to UL 50 NEMA 4 conforming to UL 50 NEMA 4X conforming to UL 50 NEMA 4 conforming to CSA C22.2 No 94 NEMA 13 conforming to CSA C22.2 No 94 NEMA 4X conforming to CSA C22.2 No 94 |
| Standards | EN/ISO 13850 EN/IEC 60204-1 EN/IEC 60947-5-5 JIS C8201-5-1 UL 508 CSA C22.2 No 14 JIS C 852 EN/IEC 60947-1 EN/IEC 60947-5-1 JIS C8201-1 |
| Product certifications | CCC UL CSA GOST |
| Vibration resistance | +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
