Harmony XB7

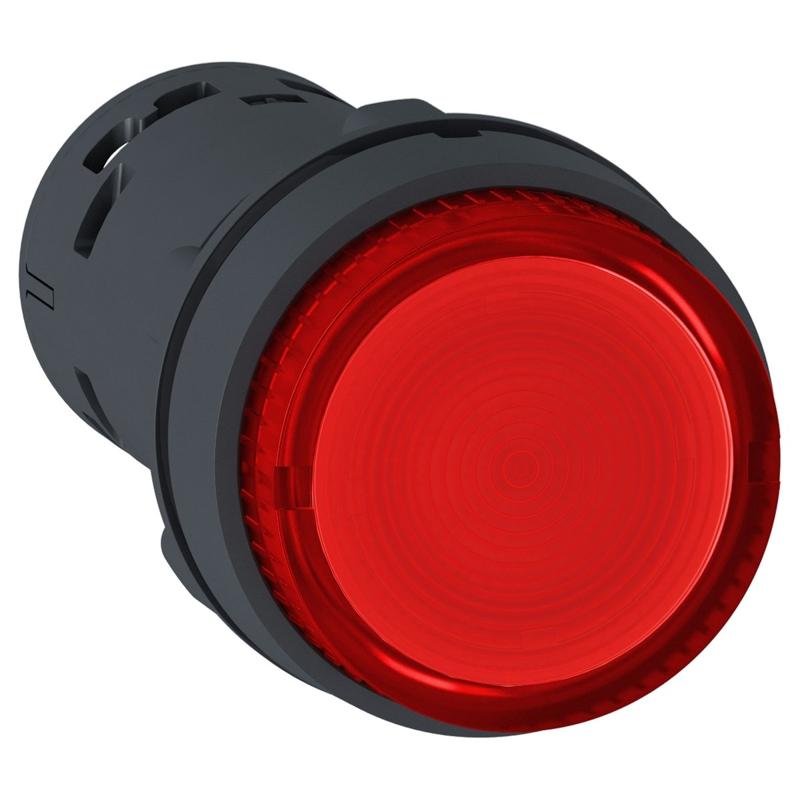

Schneider Electric catalog image for this SKU; may represent the product family.
ILLUMINATED PUSH-BUTTON
ILLUM. P.B - Bulb - Spring Rtn -1NO - Red - 230v
SKU XB7NW3461Schneider Electric XB7NW3461 is a illuminated push-button in the Harmony XB7 range. Key specifications include ip protection: IP20 (rear face) conforming to IEC 60529; net weight: 0.022 kg; product range: Harmony XB7.
IP20 (rear face) conforming to IEC 60529IP protection
0.022 kgNet weight
Harmony XB7Product range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 17, 2026.
| Product reference | XB7NW3461 |
|---|---|
| Range of product | Harmony XB7 |
| Product or component type | Illuminated push-button |
| Device short name | XB7 |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 10 |
| Light source | Incandescent (bulb not included) |
| Device presentation | Monolithic product |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 57.5 mm |
| Terminals description ISO n°1 | (13-14)NO |
| Net weight | 0.022 kg |
| Device mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Red projecting, unmarked |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Positive opening | Without |
| Mechanical durability | 300000 cycles |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with JIS No 1 screwdriver Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Short-circuit protection | 4 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1 0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1 0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ <= 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4 |
| Signalling type | Steady |
| Bulb base | BA 9s |
| [Us] rated supply voltage | 230 V AC |
| Supply voltage limits | 195…264 V AC |
| Compatibility code | XB7 |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 |
| Standards | JIS C8201-5-1 UL 508 IEC 60947-1 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-1 |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Electromagnetic emission | Class B conforming to IEC 55011 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
