ABBIS2-ZN5000

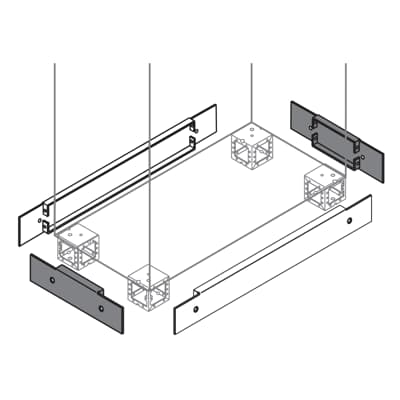

ABB catalog image for this SKU; may represent the product family.
BASE/BASE ELEMENT (ENCLOSURE/CABINET)
IS2-ZN5000
SKU ZN5000ABB IS2-ZN5000: Base/base element (enclosure/cabinet).
IS2-ZN5000Product range
Base/base element (enclosure/cabinet)Product type
ZN5000Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | ZN5000 |
|---|---|
| Catalog Description | N.2 PLINTH FLANGES 100X500MM HXW |
| Sub-Function 3 | Base front/back |
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Accessory Type | 6. Flanges |
| Product Type | 5B5B30B330 |
| Options Provided | Blind flanges front/back/side H=100 mm |
| Remarks | ETIM |
| Material | Pickled steel sheet |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Information | No declaration needed |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250121 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108472A2584 |
| Environmental Information | 1STC804013D0209 |
| Product Net Width | 105 mm |
| Product Net Height | 63 mm |
| Product Net Depth / Length | 520 mm |
| Product Net Weight | 1.577 kg |
| Dimension Diagram | No document needed |
| Reference Depth/Length | 500 mm |
| Reference Height | 1400 mm 1600 mm 1800 mm 2000 mm 2200 mm |
| Reference Width | 400 mm 600 mm 800 mm 1000 mm 1200 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 115 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Depth / Length | 530 mm |
| Package Level 1 Gross Weight | 1.735 kg |
| Package Level 1 EAN | 8015646773111 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 1STC860113 |
| Instructions and Manuals | 1STM604121R0006 |
| Data Sheet, Technical Information | 1STC804013D0209 |
| Standards | See code for structure |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
