ABBHKF1-11

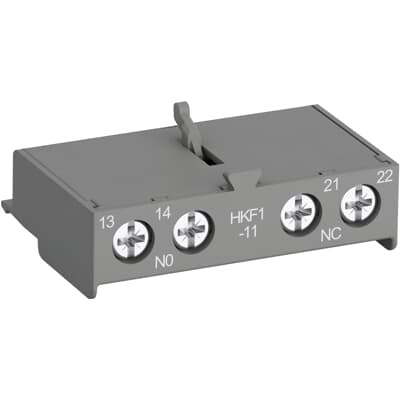

ABB catalog image for this SKU; may represent the product family.
AUXILIARY CONTACT BLOCK
HKF1-11
SKU 1SAM201901R1001ABB HKF1-11: Auxiliary contact block.
HKF1-11Product range
Auxiliary contact blockProduct type
1SAM201901R1001Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SAM201901R1001 |
|---|---|
| Catalog Description | HKF1-11 Aux.-contact for front mounting |
| Configuration Only | No |
| Country of Origin | Germany China India United States |
| Criticality | No |
| Lead Time | 999 day 0 day 67 day |
| Made To Order | No |
| Note | No |
| Product Availability Class | Replaced |
| Product Sales Status | Active Inactive |
| Quote Only | No |
| Replacement Part ID | 64693026 |
| Stocked At Warehouses | BRAPR001EXPU CHNOR001EXPU CLABB001EXPU CNIAB001EXPU COABB001EXPU DEAPRMLCEXPU DKSER001EXPU DUABB001EXPU DUABB003EXPU EESER001EXPU EGAUT001EXPU ESATD001EXPU FISER001EXPU FRAUT001EXPU GBINS001EXPU GRABB001EXPU INABB015EXPU INABB039EXPU INABBRLCEXPU ITIND002EXPU NLABB021EXPU NOATDRLCEXPU SGIND002EXPU TRDMD001EXPU USABB251EXPU ZATAD021EXPU |
| Storage Location | 4001 |
| Warranty Return | Product under warranty must be returned |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC131011M6802 2CDC131034M6801 2CDC131022M6802 2CDC131120M6801 2CDC131081M6801 2CDC131082M6801 |
| Instructions and Manuals (Part 3) | 1SBC100214C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Product Net Width | 45 mm |
| Product Net Height | 12.5 mm |
| Product Net Depth / Length | 26.5 mm |
| Product Net Weight | 0.015 kg |
| Rated Operational Voltage | 250 V |
| Rated Frequency (f) | Auxiliary Circuit DC Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 250 V |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Degree of Protection | IP20 |
| Electrical Durability | 100000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 1.5 mm² Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm² Flexible 1/2x 0.75 ... 1.5 mm² Rigid 1/2x 1.0 ... 2.5 mm² |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length | Auxiliary Circuit 8 mm |
| Recommended Screw Driver | M3 Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Maximum Operating Voltage UL/CSA | Main Circuit 250 V AC |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 16-14 AWG Stranded 1/2x 16-14 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Contact Rating UL/CSA | B300 R300 |
| Ambient Air Temperature | Operation -25 ... +60 °C Storage -50 ... +80 °C |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| A2L Certificate – IEC | 1SAA963000-4601 |
| ABS Certificate | 1SAA963001-0101 |
| BV Certificate | 1SAA963002-0201 |
| CB Certificate | 1SAA963003-2002 |
| CCC Certificate | 2024010305656672 |
| CQC Certificate | CQC2017010304032779 |
| cUL Certificate | cUL_E137861 |
| Declaration of Conformity - CCC | 2020980304001251 |
| Declaration of Conformity - CE | 1SAD101100-3410 |
| Declaration of Conformity - UKCA | 1SAD201100-3410 |
| DNV GL Certificate | 1SAA963001-0304 |
| EAC Certificate | 1SAA963000-2701 |
| LR Certificate | 1SAA963001-0501 1SAA963001-0502 1SAA963000-0505 |
| RINA Certificate | 1SAA963002-0802 |
| UL Certificate | UL_E137861 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 148 mm |
| Package Level 1 Depth / Length | 36 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.195 kg |
| Package Level 1 EAN | 4013614481413 |
| Package Level 2 Units | carton 500 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 10.125 kg |
| Package Level 2 EAN | 4013614522727 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| E-Number (Finland) | 3706015 |
| E-Number (Norway) | 4364278 |
| E-Number (Sweden) | 3112001 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
