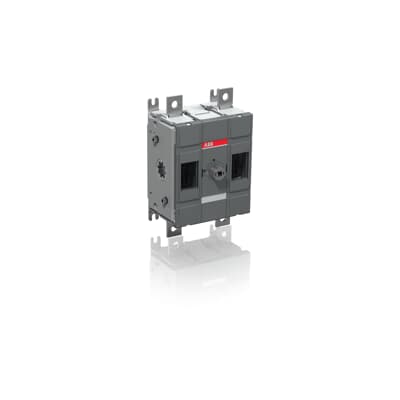

ABB catalog image for this SKU; may represent the product family.
SWITCH DISCONNECTOR (DC)
OTDC160E11
SKU 1SCA123745R1001ABB OTDC160E11: Switch disconnector (DC). Pole configuration: 2P.
2PPoles
OTDC160E11Product range
Switch disconnector (DC)Product type
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 15, 2026.
| Product ID | 1SCA123745R1001 |
|---|---|
| Catalog Description | OTDC160E11 DC Switch-disconnector |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC301114M0201 |
| Environmental Information | NA |
| Environmental Product Declaration - EPD | 1SCC301248D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66.5 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301081M0206 |
| Mechanical Drawings | OTDC100_250E11.igs 1SCC307007F0002 1SCC307008F0002 |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country of Origin | Finland |
| Product Frame Size | S1.0 |
| Product Net Width | 115.5 mm 4.5 in |
| Product Net Height | 176 mm 6.9 in |
| Product Net Depth / Length | 83.5 mm 3.3 in |
| Product Net Weight | 1.2 kg 2.7 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 96 mm 3.8 in |
| Package Level 1 Depth / Length | 160 mm 6.3 in |
| Package Level 1 Height | 244 mm 9.6 in |
| Package Level 1 Gross Weight | 1.4 kg 3 lb |
| Package Level 1 EAN | 6417019544946 |
| Connection Configuration | Single circuit 2a, 2b |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Mounting Type | Base mounting |
| Number of Circuits | 1 |
| Number of Poles | 2P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Positive Opening Operation Torque (Direct Opening Action) | 5 … 8 N·m |
| Power Loss | at Rated Operating Conditions per Pole 4 W Total 8 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current DC-21B (Ie) | (1000 V) 160 A |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 10 kA for 1 s 5 kA for 0.1 s 10 kA |
| Shaft Diameter | 6 mm 0.24 in |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles 11 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 19.5 mm 0.77 in |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| CCC Certificate | CQC2013010302611671 |
| Declaration of Conformity - CE | 1SCC301201D2703 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| DNV GL Certificate | 1SCC301231D0201 |
