ABBOTM3200E4CM230C

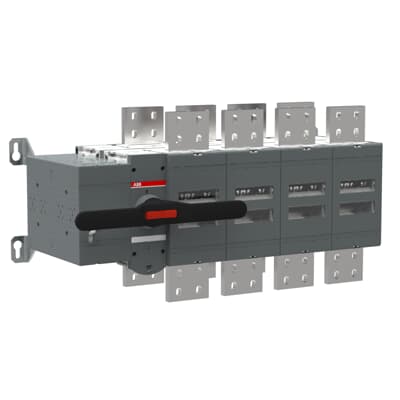

ABB catalog image for this SKU; may represent the product family.
SWITCH DISCONNECTOR (AC)
OTM3200E4CM230C
SKU 1SCA129242R1001ABB OTM3200E4CM230C: Switch disconnector (AC). Pole configuration: 4P.
4PPoles
OTM3200E4CM230CProduct range
Switch disconnector (AC)Product type
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 15, 2026.
| Product ID | 1SCA129242R1001 |
|---|---|
| Catalog Description | OTM3200E4CM230C MOTORIZED C/O SWITCH |
| End Of Life Disassembling Instructions | 1SCC303062M0201 |
| Environmental Product Declaration - EPD | 1SCC303114D0201 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303002M0204 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 831.5 mm 32.74 in |
| Product Net Height | 410 mm 16.14 in |
| Product Net Depth / Length | 429 mm 16.89 in |
| Product Net Weight | 76 kg 167.55 lb |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 590 mm 23.2 in |
| Package Level 1 Depth / Length | 790 mm 31.1 in |
| Package Level 1 Height | 510 mm 20.1 in |
| Package Level 1 Gross Weight | 94.5 kg 208.3 lb |
| Package Level 1 EAN | 6417019589398 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 3200 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 95 W |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3200 A (500 V) 3200 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
| Declaration of Conformity - CE | 1SCC303057D2701 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
