ABBCR-PLP

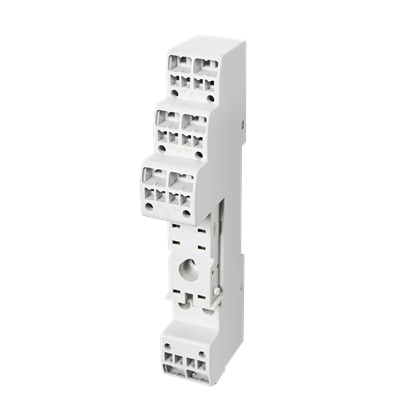

ABB catalog image for this SKU; may represent the product family.
RELAY SOCKET
CR-PLP
SKU 1SVR405650R0310ABB CR-PLP: Relay socket.
CR-PLPProduct range
Relay socketProduct type
1SVR405650R0310Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SVR405650R0310 |
|---|---|
| Catalog Description | CR-PLP Push-in socket for 1c/o or 2c/o CR-P relays |
| Lead Time | 42 day |
| Made To Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | USSVCEXPU |
| Warranty Return | Product under warranty must be returned |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85366990 |
| Data Sheet, Technical Information | 2CDC110004C0210_05 |
| Instructions and Manuals | 1SVC405650M9040 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Product Net Width | 15.8 mm |
| Product Net Height | 98.4 mm |
| Product Net Depth / Length | 42.5 mm |
| Product Net Weight | 0.036 kg |
| Function | Accessory for interface relays CR-P |
| Sub-Function | Socket for PCB relays |
| Sub-Function 2 | Standard socket for pcb relay 1 c/o or 2 c/o |
| Rated Operational Voltage | 250 V |
| Output Signal | 250 V / 10 A |
| Terminal Type | Push-in Spring Terminals |
| Rated Insulation Voltage (Ui) | 2000 V |
| Wire Stripping Length | 10 mm |
| Recommended Screw Driver | 2.5 |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-17 AWG Rigid 2x 20-16 AWG Stranded 2 x 20-16 AWG |
| Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C |
| Maximum Operating Altitude Permissible | 2000 m |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| CSA Certificate | CSA_262671_2785566 |
| cURus Certificate | cURus508_E244328 |
| Declaration of Conformity - CE | 1SVD982020-0001 |
| Declaration of Conformity - UKCA | 1SVD982020-1000 |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Width | 102 mm |
| Package Level 1 Depth / Length | 163 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Gross Weight | 0.401 kg |
| Package Level 1 EAN | 4053546062120 |
| E-Number (Norway) | 4187814 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
