ABBCR-M3SS

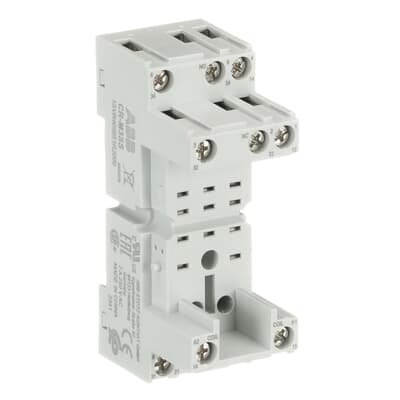

ABB catalog image for this SKU; may represent the product family.
RELAY SOCKET
CR-M3SS
SKU 1SVR405651R2000ABB CR-M3SS: Relay socket.
CR-M3SSProduct range
Relay socketProduct type
1SVR405651R2000Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SVR405651R2000 |
|---|---|
| Catalog Description | CR-M3SS Standard socket for 3c/o CR-M relay |
| Country of Origin | Germany Turkiye |
| Lead Time | 0 day 35 day 28 day |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU BRABB008EXPU CHSEC006EXPU CZABB004EXPU TRESA001EXPU |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85366990 |
| Data Sheet, Technical Information | 2CDC110004C0210_05 |
| Instructions and Manuals | 1SVC405650M9000 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC132577_EPLAN |
| Product Net Width | 27 mm |
| Product Net Height | 42.5 mm |
| Product Net Depth / Length | 82 mm |
| Product Net Weight | 0.068 kg |
| Function | Accessory for interface relays CR-M |
| Sub-Function | Socket for miniature relays |
| Sub-Function 2 | Standard socket for miniature relay 3 c/o |
| Rated Operational Voltage | 250 V |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 7 A |
| Rated Insulation Voltage (Ui) | 3 V |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG |
| Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C |
| Maximum Operating Altitude Permissible | 2000 m |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| CSA Certificate | CSA_262671_2785566 |
| cURus Certificate | cURus508_E244328 |
| Declaration of Conformity - CE | 1SVD982020-0001 |
| Declaration of Conformity - UKCA | 1SVD982020-1000 |
| EAC Certificate | EAC_RU_C-DE.ME77.B.00446-19 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 141 mm |
| Package Level 1 Depth / Length | 78 mm |
| Package Level 1 Height | 95 mm |
| Package Level 1 Gross Weight | 0.682 kg |
| Package Level 1 EAN | 4013614373794 |
| E-Number (Finland) | 2712715 |
| E-Number (Norway) | 4187432 |
| E-Number (Sweden) | 4005372 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
