ABBCM-ENE

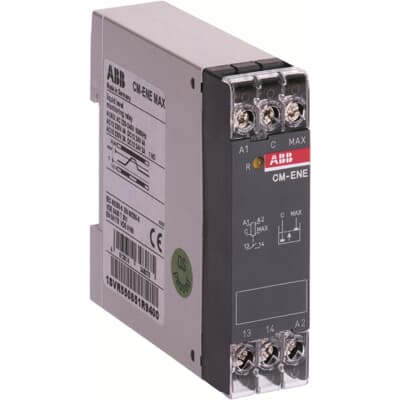

ABB catalog image for this SKU; may represent the product family.
(FILL) LEVEL MONITORING RELAY
CM-ENE MAX
SKU 1SVR550855R9400ABB CM-ENE MAX: (Fill) level monitoring relay.
CM-ENEProduct range
(Fill) level monitoring relayProduct type
1SVR550855R9400Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SVR550855R9400 |
|---|---|
| Catalog Description | CM-ENE MAX Liquid level relay 1n/o, 24VAC |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Data Sheet, Technical Information | 2CDC110004C0210_02 |
| Instructions and Manuals | 1SVC550520M0000 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Product Net Width | 22.5 mm |
| Product Net Height | 78 mm |
| Product Net Depth / Length | 78.5 mm |
| Product Net Weight | 0.106 kg |
| Function | Filling monitoring |
| Sub-Function | Overflow protection |
| Number of Electrodes | 2 |
| Measuring Range | 0 ... 100 kΩ |
| Rated Control Supply Voltage (Us) | 24 V AC |
| Rated Frequency (f) | Supply Circuit 50/60 Hz |
| Output | 1 N/O Contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 4 kV Supply Circuit / Measuring Circuit 4 kV Supply Circuit / Output Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 250 V Supply Circuit / Measuring Circuit 250 V Supply Circuit / Output Circuit 250 V |
| Degree of Protection | Housing IP50 Terminals IP20 |
| Short-Circuit Protective Devices | Output Circuit NO - F Type Fuses 10 A |
| Connecting Capacity | Flexible with Ferrule 2x 0.75 ... 1.5 mm² Flexible 2x 1 ... 1.5 mm² Rigid 2x 0.75 ... 1.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible with Ferrule 2x 18-16 AWG Flexible 2x 18-16 AWG Rigid 2x 18-16 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Ambient Air Temperature | Operation -20 ... +60 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| CB Certificate | CB_DK-8880 |
| CCC Certificate | CCC_2013010303605960 |
| cUL Certificate | cUL508_E140448 |
| Declaration of Conformity - CCC | 2020980303000202 |
| Declaration of Conformity - CE | 1SVD981024-00 |
| Declaration of Conformity - UKCA | 1SVD981024-10 |
| UL Certificate | UL508_E140448 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 23 mm |
| Package Level 1 Depth / Length | 82 mm |
| Package Level 1 Height | 82 mm |
| Package Level 1 Gross Weight | 0.118 kg |
| Package Level 1 EAN | 4013614348099 |
| Package Level 2 EAN | 4013614580888 |
| E-Number (Finland) | 2712851 |
| E-Number (Norway) | 4187269 |
| E-Number (Sweden) | 3860806 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
