ABBCT-MFS.21S

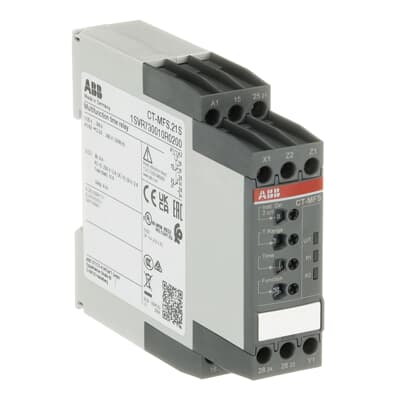

ABB catalog image for this SKU; may represent the product family.
TIMER RELAY
CT-MFS.21S
SKU 1SVR730010R0200ABB CT-MFS.21S: Timer relay.
CT-MFS.21SProduct range
Timer relayProduct type
1SVR730010R0200Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SVR730010R0200 |
|---|---|
| Catalog Description | CT-MFS.21S Time relay, multifunction 2c/o, 24-240VAC/DC |
| Country of Origin | Germany India |
| Lead Time | 0 day 14 day 33 day 35 day |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU BRABB008EXPU BRAPR001EXPU CHNOR001EXPU CHSEC006EXPU CLABB001EXPU CNIAB001EXPU COABB001EXPU CZABB006EXPU DEAPRMLCEXPU DKSER001EXPU DUABB001EXPU DUABB003EXPU EESER001EXPU EGAUT001EXPU ESATD001EXPU FISER001EXPU FRAUT001EXPU GBINS001EXPU GRABB001EXPU INABB015EXPU INABB039EXPU INABBRLCEXPU ITIND002EXPU NLABB021EXPU NOATDRLCEXPU SGIND002EXPU TRDMD001EXPU USABB251EXPU USSVCEXPU ZATAD021EXPU |
| Configuration Only | No |
| Criticality | No |
| Note | No |
| Product Availability Class | Standard delivery time |
| Storage Location | 4001 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Data Sheet, Technical Information | 2CDC110004C0210_01 |
| Instructions and Manuals | 1SVC730050M1000 1SVC730050M0000 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC201310_EPLAN |
| Product Net Width | 22.5 mm |
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.145 kg |
| Function | Remote potentiometer connection |
| Timer Relay Type | Impulse OFF Impulse ON OFF-Delay ON-Delay Star-Delta |
| Time Range | 0.05 s ... 300 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz DC |
| Output | 2 C/O Contacts |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V 100 mA |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV Output Circuit 1 / Output Circuit 2 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 500 V Output Circuit 1 / Output Circuit 2 300 V |
| Degree of Protection | Housing IP50 Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A Output Circuit NO - F Type Fuses 10 A |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm² Flexible with Ferrule 2x 0.5 ... 1.5 mm² Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² Flexible 1x 0.5 ... 2.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 1x 0.5 ... 4 mm² Rigid 2x 0.5 ... 2.5 mm² |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 8 mm |
| Recommended Screw Driver | 4.5 0.8 x 4 Pozidriv 1 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61812-1 UL 508 |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG Flexible 2x 18-16 AWG Rigid 2x 20-14 AWG Rigid 1x 20-12 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +60 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 11 ms |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 55e08e0e-ba03-4034-abb0-ca8dfcd1790e Germany |
| Simplified SCIP | 00b6a81a-6244-4bbb-a4da-4b8f79710aba Spain 2b5306b7-c867-476f-9796-a3b05a7b30bd Hungary 3325a468-1c2d-4955-884c-c4e15573dbc2 Norway 39a233ee-8c19-43fe-a7db-2b4a7c6bb54f Netherlands 402c1ff9-2b96-4345-a829-a9b4715f4454 Belgium 474268ba-dadc-4e91-9c42-cf5741ebcf2f Bulgaria 4909cb93-6024-43e1-a316-43675d355677 Finland 4a68ef1e-ae72-4728-ba74-132cbae384a4 France 542a857c-d038-4255-8801-e72f3a17717d Croatia 6d6a2948-abba-425a-b23a-2b8d1e78e2ed Poland 6d814e55-9514-4739-bd60-b8e667ecc82f Hungary 6dadbda3-d694-4bce-84a0-c4efb4762df9 Denmark 7771e616-ae57-4ee3-aef3-377817a3dff7 Poland 7c683181-4569-4fd3-af74-2225b14c411e Italy 88d5633e-c173-4e1a-8d67-cc62c1fa42d9 Germany 8ae6b600-1759-48a7-8303-bd492a9d7f65 Sweden 9a532780-6951-4630-b3b7-cf9a0313f213 Germany 9de29d39-6b26-44be-b1b4-abd55f0ccefe Sweden a4a7c3ba-da9d-45be-b3bb-6ae8c52c1e3d Portugal a8551112-5ce7-4018-855d-a7dfd0441a35 Germany aa7342e9-cf10-4933-b67a-0447377f32f7 Czechia ab544dd3-a2f4-43b1-9a23-80a0a96379a0 Estonia b431ed02-3c72-442a-b776-ef1c10ff321f Poland baafd8c7-15f5-44b1-99f7-67c6bd360516 Belgium d866b545-0ca5-4170-b176-b0b61b6e7ae6 Germany f54a1e34-80e6-4917-a668-fcf9e4586980 France fabcf1b2-8db3-441c-ad91-7d88e6d20978 Greece |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| ABB EcoSolutions | Yes |
| ABB EcoSolutions Profile | 1SFC100125C0364 |
| Environmental Product Declaration - EPD | 1SAC200371M0001 |
| CCC Certificate | CCC_2007010303255979 |
| cULus Certificate | cULus508_20110711-E140448A |
| Declaration of Conformity - CE | 1SVD981008 |
| Declaration of Conformity - UKCA | 1SVD981008-10 |
| DNV GL Certificate | DNV_GL_TAA00000XR |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 97 mm |
| Package Level 1 Depth / Length | 30 mm |
| Package Level 1 Height | 109 mm |
| Package Level 1 Gross Weight | 0.167 kg |
| Package Level 1 EAN | 4016779851367 |
| E-Number (Finland) | 2712194 |
| E-Number (Norway) | 4187938 |
| E-Number (Sweden) | 4033107 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
