ABBCM-TCN.011P

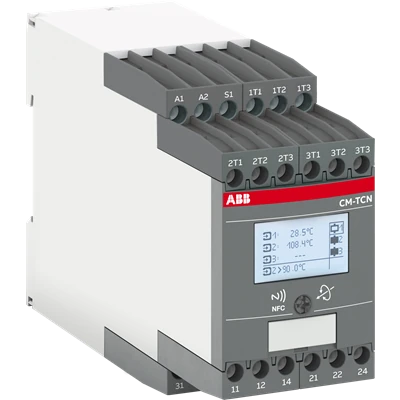

ABB catalog image for this SKU; may represent the product family.
TEMPERATURE MONITORING RELAY
CM-TCN.011P
SKU 1SVR760740R0110ABB CM-TCN.011P: Temperature monitoring relay.
CM-TCN.011PProduct range
Temperature monitoring relayProduct type
1SVR760740R0110Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SVR760740R0110 |
|---|---|
| Catalog Description | CM-TCN.011P Temp. monitoring relays LCD+NFC, -200..+850°C, 24-240VAC/DC |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Data Sheet, Technical Information | 2CDC112286C0201 |
| Instructions and Manuals | 1SVC750040M0000 2CDC112285M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC159147_EPLAN |
| Product Net Width | 45 mm |
| Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm |
| Product Net Weight | 0.265 kg |
| Function | Overtemperature monitoring Undertemperature monitoring Over- and undertemperature monitoring |
| Measuring Range | -200 ... 850 °C |
| Sensor Type | PT100 PTC Bimetal Switch NTC PT1000 |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Rated Frequency (f) | Supply Circuit 50 Hz Supply Circuit 60 Hz Supply Circuit DC Hz |
| Output | 3x 1 C/O Contact, Configurable |
| Terminal Type | Screwless Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V 100 mA |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 6 kV Output Circuit 1 / Output Circuit 2 4 kV Supply Circuit / Measuring Circuit 6 kV Supply Circuit / Output Circuit 6 kV |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 600 V Output Circuit 1 / Output Circuit 2 300 V Supply Circuit / Measuring Circuit 600 V Supply Circuit / Output Circuit 600 V |
| Degree of Protection | Housing IP50 Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 2 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A Output Circuit NO - F Type Fuses 10 A |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | Nr. Operations 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 2x 0.5 ... 1.5 mm² Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 2x 0.5 ... 1.5 mm² |
| Wire Stripping Length | 8 mm |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible 2x 18-16 AWG Rigid 2x 20-16 AWG |
| Pilot Duty UL/CSA | B300 |
| Ambient Air Temperature | Operation -25 ... +60 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD981001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 3ba60ded-6a3d-4090-b885-2b2a1b92eeb2 Germany |
| Simplified SCIP | 026706bd-1a2f-4e5e-a95a-689027cbca32 Greece 2497b846-e7ff-4f63-8792-ae138dd6f202 Germany 288de28d-bcf7-4971-bff5-40021d325731 Belgium 303d9034-c181-4327-b28f-cde09901bebf Poland 30d2a92f-beda-47e9-a5e6-0e70e1b0fc9a Sweden 44821f92-ec3a-40e5-b071-bcfc955a332b Czechia 61e5d1ef-64bd-4c04-a189-68bee97b22e9 Poland 623d678e-9346-4ceb-940c-583e345735b1 Finland 65ccd4d2-ddc8-4dab-a6bc-8ec949c03135 Hungary 7ac62ad7-60b6-49af-a8e8-96e346ed6406 Italy 7b067587-424b-43a9-8b99-4a12fcf870b0 Denmark 7fb79e9d-f158-4883-be7c-8fce92014587 Sweden 84c4cb1c-73ef-4ed0-9330-2ed04727b4ed Poland 87014830-b79b-4eb6-8899-aba714b0027b Germany 964b4678-f416-4d9f-be8d-9b8178b83abc Belgium 97a3f854-2c7a-451f-b103-b191db7662aa Netherlands 9ed1c692-b066-44a6-8fd5-6370ccc48399 Norway a0cc3c4c-649c-42d9-a3a0-e973b2f0d797 Hungary a2b4e1e3-fa12-4303-ac41-4bc9cea37ed5 Croatia c442cf7b-b075-444c-a41b-58777b4eef36 France cf89e85a-bbd2-4be7-9d50-f5cbd5ff67de Germany d97a637c-41fc-4719-9589-159a2e1d60ae Germany dd28c677-df24-4ec1-9e1f-e9c803ecbf4b France dec68d0f-e46a-4b57-b58d-1a79a3563070 Estonia dee6dd1f-0f65-4516-8185-686a0cda74ae Spain fa91e002-6294-4e01-acf0-0e2943e1b327 Portugal fd6d71e9-ef3c-4b5a-b7c0-9d40cc45caa4 Bulgaria |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
| Environmental Product Declaration - EPD | 1SAC200438H0001 |
| CSA Certificate | UL-CA-L140448-41-22600202-1 |
| Declaration of Conformity - CE | 1SVD981067-00 |
| EU Data Act Compliance Declaration | 1SFC100125C0343 |
| UL Certificate | UL-US-L140448-11-22600202-1 |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 97 mm |
| Package Level 1 Depth / Length | 52.5 mm |
| Package Level 1 Height | 109 mm |
| Package Level 1 Gross Weight | 0.293 kg |
| Package Level 1 EAN | 4013614552625 |
| E-Number (Norway) | 4187798 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
