ComPact ComPact NS630b...1600

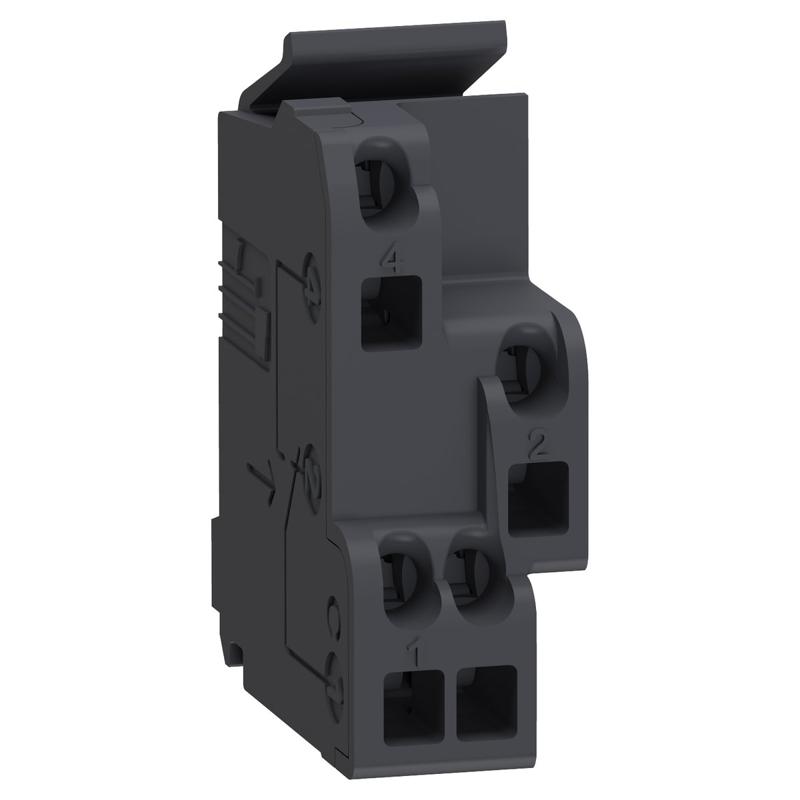

Schneider Electric catalog image for this SKU; may represent the product family.
AUXILIARY CONTACT
standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact
SKU 29450Schneider Electric 29450 is a auxiliary contact in the ComPact ComPact NS630b...1600 range. Key specifications include signal contacts: 1 NO/NC; mounting mode: Clip-on; product range: ComPact ComPact NS630b...1600.
1 NO/NCSignal contacts
Clip-onMounting mode
ComPact ComPact NS630b...1600Product range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 17, 2026.
| Product reference | 29450 |
|---|---|
| Product or component type | Auxiliary contact |
| Device short name | OF SD SDE SDV |
| Device application | Breaker status monitoring |
| Range compatibility | ComPact ComPact NS630b...1600 ComPact ComPact NS1600b...3200 ComPact ComPacT INS ComPact Compact INV ComPact ComPact NSX EasyPact EasyPact CVS PowerPact PowerPact Multistandard ComPact ComPact NSX DC |
| Signal contacts composition | 1 NO/NC |
| Fault type | General electric fault |
| Local signalling | ON/OFF indication for open/close Trip indicator for relay trip indicator Fault trip for electrical fault |
| Auxiliary contacts type | Standard |
| Mounting mode | Clip-on |
| [Ith] conventional free air thermal current | 5 A |
| Breaking capacity (A) | AC-12: 6 A at 24 V AC 50/60 Hz AC-12: 6 A at 48 V AC 50/60 Hz AC-12: 6 A at 110 V AC 50/60 Hz AC-12: 6 A at 220/240 V AC 50/60 Hz AC-12: 6 A at 380/440 V AC 50/60 Hz AC-12: 6 A at 480 V AC 50/60 Hz AC-12: 6 A at 660/690 V AC 50/60 Hz AC-15: 6 A at 24 V AC 50/60 Hz AC-15: 6 A at 48 V AC 50/60 Hz AC-15: 5 A at 110 V AC 50/60 Hz AC-15: 4 A at 220/240 V AC 50/60 Hz AC-15: 2 A at 380/440 V AC 50/60 Hz AC-15: 1.5 A at 480 V AC 50/60 Hz AC-15: 0.1 A at 660/690 V AC 50/60 Hz DC-12: 6 A at 24 V DC 50/60 Hz DC-12: 2.5 A at 48 V DC 50/60 Hz DC-12: 0.6 A at 110 V DC 50/60 Hz DC-12: 0.3 A at 250 V DC 50/60 Hz DC-14: 1 A at 24 V DC 50/60 Hz DC-14: 0.2 A at 48 V DC DC-14: 0.05 A at 110 V DC DC-14: 0.03 A at 250 V DC |
| Minimum load | 100 mA at 24 V DC |
| Auxiliary connection terminal | Spring 0.5…1.5 mm² (20 AWG...16 AWG) |
| Accessory / separate part category | Spare part for Compact NS630b...1600 Spare part for Compact NS1600b...3200 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
