Galaxy PX

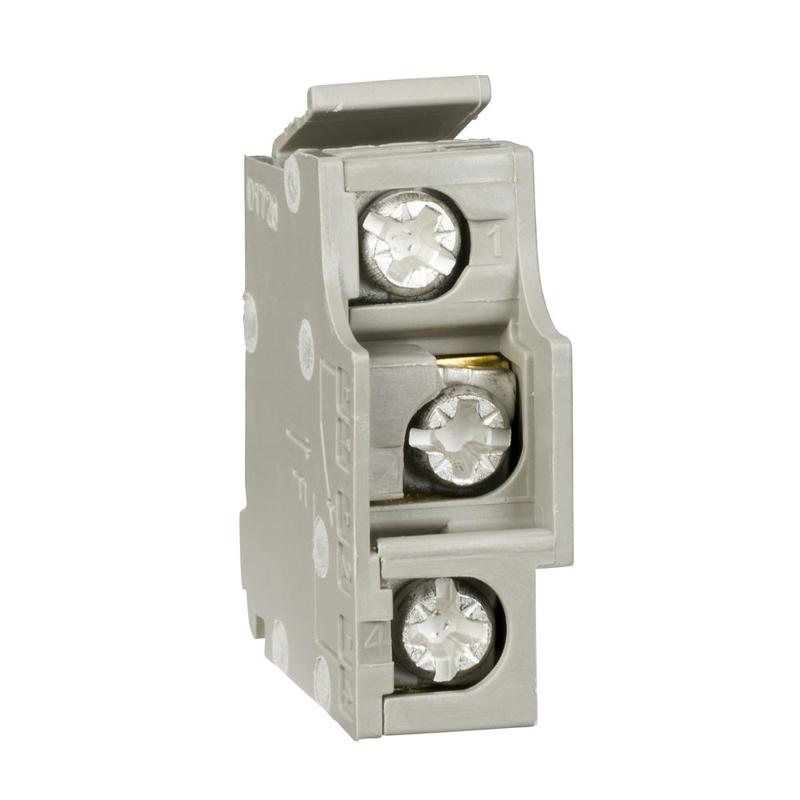

Schneider Electric catalog image for this SKU; may represent the product family.
AUXILIARY CONTACT
low level auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type
SKU 29452Schneider Electric 29452 is a auxiliary contact in the Galaxy PX range. Key specifications include signal contacts: 1 NO/NC; mounting mode: Clip-on; product range: Galaxy PX.
1 NO/NCSignal contacts
Clip-onMounting mode
Galaxy PXProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 29452 |
|---|---|
| Product or component type | Auxiliary contact |
| Device short name | SD SDV OF SDE |
| Device application | Breaker status monitoring |
| Range compatibility | Galaxy PX Galaxy VL Galaxy VM Galaxy VS Galaxy VX |
| Signal contacts composition | 1 NO/NC |
| Fault type | General electric fault |
| Local signalling | ON/OFF indication for open/close Trip indicator for relay trip indicator Fault trip for electrical fault |
| Auxiliary contacts type | Low level |
| Mounting mode | Clip-on |
| [Ith] conventional free air thermal current | 5 A |
| Breaking capacity (A) | AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-12: 5 A at 110 V AC 50/60 Hz AC-12: 5 A at 220/240 V AC 50/60 Hz AC-12: 5 A at 380/440 V AC 50/60 Hz AC-12: 5 A at 480 V AC 50/60 Hz AC-15: 3 A at 24 V AC 50/60 Hz AC-15: 3 A at 48 V AC 50/60 Hz AC-15: 2.5 A at 110 V AC 50/60 Hz AC-15: 2 A at 220/240 V AC 50/60 Hz AC-15: 1.5 A at 380/440 V AC 50/60 Hz AC-15: 1 A at 480 V AC 50/60 Hz DC-12: 5 A at 24 V DC DC-12: 2.5 A at 48 V DC DC-12: 0.6 A at 110 V DC DC-12: 0.3 A at 250 V DC DC-14: 1 A at 24 V DC DC-14: 0.2 A at 48 V DC DC-14: 0.05 A at 110 V DC DC-14: 0.03 A at 250 V DC |
| Minimum load | 1 mA at 4 V DC |
| Accessory / separate part category | Spare part for Compact NS630b...1600 Spare part for Compact NS1600b...3200 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
