ABBE299-11

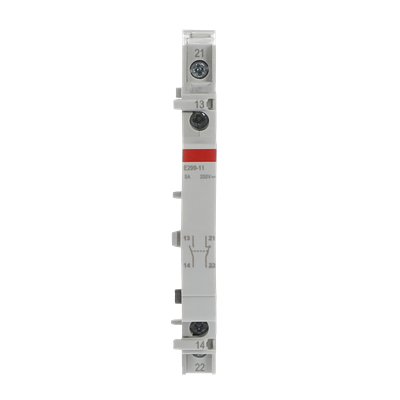

ABB catalog image for this SKU; may represent the product family.
INSTALLATION RELAY
E299-11
SKU 2CCA704340R0001ABB E299-11: Installation relay.
E299-11Product range
Installation relayProduct type
2CCA704340R0001Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CCA704340R0001 |
|---|---|
| Catalog Description | E299-11 Auxiliary Contact |
| Function | Auxiliary Contact |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Tightening Torque | 1.2 - 1.5 N·m |
| Accessory Type | Other |
| Rated Voltage (Ur) | 250 V AC |
| Maximum Control Current DC | 5 A |
| Rated Frequency (f) | 50 Hz |
| Minimum Switching Capacity | 24 V 10 mA |
| Power Loss | Total 0.1 W |
| Number of Contacts NC | 1 |
| Number of Contacts NO | 1 |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| RoHS Declaration | 9AKK108472A5566 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260417 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260414 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Environmental Information | 2CCC441012D0202 |
| Product Net Width | 18 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 58 mm |
| Product Net Weight | 45 g |
| Dimension Diagram | 9AKK107992A6182 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 96 mm |
| Package Level 1 Height | 82 mm |
| Package Level 1 Depth / Length | 185 mm |
| Package Level 1 Gross Weight | 539 g |
| Package Level 1 EAN | 7612270939985 |
| Minimum Order Quantity | 10 piece |
| E-Number (Norway) | 1404066 |
| E-Number (Switzerland) | 534349920 |
| Declaration of Conformity - CE | 2CCC005102D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6140 |
| VDE Certificate | VDE E29x_40040851 |
| Instructions and Manuals | No document needed |
| Data Sheet, Technical Information | 2CCC441020C0201 |
| Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
