ABBE290-16-20/48

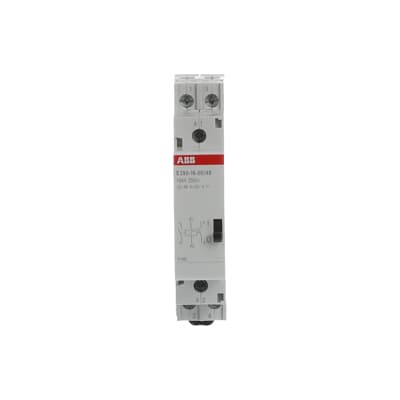

ABB catalog image for this SKU; may represent the product family.
LATCHING RELAY
E290-16-20/48
SKU 2TAZ312000R2032ABB E290-16-20/48: Latching relay. Rated current: 16 A.
16 ARated current
E290-16-20/48Product range
Latching relayProduct type
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2TAZ312000R2032 |
|---|---|
| Catalog Description | E290-16-20/48 Electromechanical Latching Relay |
| Function | Mechanical latching relay |
| Rated Control Circuit Voltage (Uc) | 48 V AC 24 V DC |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Sound dB (A) | (@distance 1 m) 60 dB |
| Tightening Torque | 1.2 - 1.5 N·m |
| Response Time | <3 ms |
| Impulse Duration | Minimum 50 ms |
| Contact Type | Normally Open (NO) |
| Coil Consumption | Control Voltage V AC 48 V AC Average Pull-in Value 50 Hz 0.212 A Control Voltage V DC 24 V DC Average Pull-in Value 50 Hz 0.207 A |
| Connecting Capacity | Solid 1 x 1 ... 10 mm² Flexible 2 x 2.5 mm² Flexible with Cable End 1 x 0.75 ... 6 mm² Flexible with Cable Lug 1 x 0.75 ... 6 mm² |
| Supply Voltage | 250 … 250 V |
| Rated Insulation Voltage (Ui) | 48 V AC 24 V DC |
| Rated Control Supply Voltage (Us) | 250 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 16 A |
| Current Rating, Main Switch | 16 A |
| Maximum Switching Current | cos phi = 0.6 16 A |
| Maximum Control Current DC | 5 A |
| Frequency (f) | Control Voltage 1 50 Hz |
| Rated Frequency (f) | 50 Hz |
| Power Loss | Total 0.64 W |
| Number of Contacts NO | 2 |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| RoHS Declaration | 9AKK108472A5566 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260417 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260414 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Environmental Information | 2CCC441012D0202 |
| Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 18 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 62 mm |
| Product Net Weight | 122 g |
| Built-In Depth (t2) | 68 mm |
| Dimension Diagram | 9AKK107992A6188 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 96 mm |
| Package Level 1 Height | 82 mm |
| Package Level 1 Depth / Length | 185 mm |
| Package Level 1 Gross Weight | 1296 g |
| Package Level 1 EAN | 7612270939701 |
| Minimum Order Quantity | 10 piece |
| E-Number (Finland) | 2712537 |
| E-Number (Norway) | 1404016 |
| Declaration of Conformity - CE | 2CCC005102D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6139 |
| VDE Certificate | VDE E29x_40040851 |
| Instructions and Manuals | 2CCC441005M0801 |
| Data Sheet, Technical Information | 2CCC441020C0201 |
| Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
