Acti9 iIL

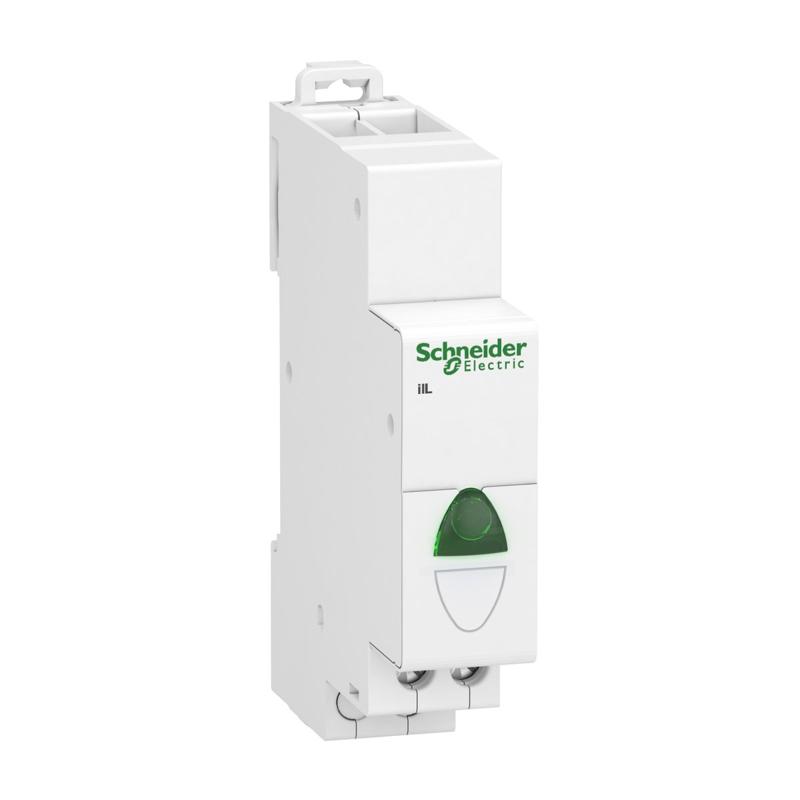

Schneider Electric catalog image for this SKU; may represent the product family.
MODULAR PILOT LIGHT
Acti9 iIL single indicator light - Green - 110-230 Vac
SKU A9E18321Schneider Electric A9E18321 is a modular pilot light in the Acti9 iIL range. Key specifications include mounting mode: Fixed; mounting support: Symmetrical DIN rail; ip protection: IP2.
FixedMounting mode
Symmetrical DIN railMounting support
IP2IP protection
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 17, 2026.
| Product reference | A9E18321 |
|---|---|
| range of product | Acti9 |
| Product name | Acti9 iIL |
| Product or component type | Modular pilot light |
| Device short name | iIL |
| [Us] rated supply voltage | 110...230 V AC at 50/60 Hz 110...130 V DC |
| indicator light | 1 LED green, service life 100000 h of constant lighting efficiency (consumption 0.3 W) |
| Mounting mode | Fixed |
| Mounting support | Symmetrical DIN rail |
| Comb busbar and distribution block compatibility | Upside: ProDis |
| 9 mm pitches | 2 |
| Height | 82 mm |
| Width | 18 mm |
| Depth | 69.5 mm |
| Colour | White (RAL 9003) |
| Auxiliary connection terminal | Tunnel type terminal 1 cable(s) rigid 0.5 mm² Tunnel type terminal 2 cable(s) rigid 2.5 mm² Tunnel type terminal 1 cable(s) flexible 0.5 mm² Tunnel type terminal 2 cable(s) flexible 2.5 mm² Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm² |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| Standards | IEC 60947-5-1 |
| IP degree of protection | IP2 IPxx B |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…80 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
