Acti9 iRC

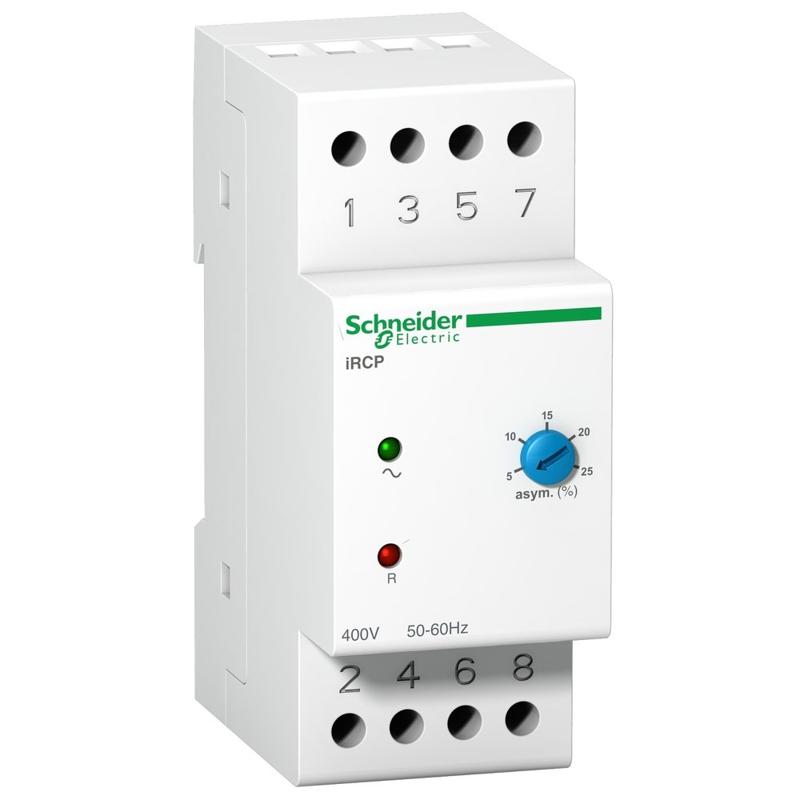

Schneider Electric catalog image for this SKU; may represent the product family.
CONTROL RELAY
phase control relay iRCP - 8 A - 400 V 50/60Hz - 1 OC
SKU A9E21180Schneider Electric A9E21180 is a control relay in the Acti9 iRC range. Key specifications include signal contacts: 1 C/O; mounting mode: Fixed; mounting support: 35 mm symmetrical DIN rail.
1 C/OSignal contacts
FixedMounting mode
35 mm symmetrical DIN railMounting support
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | A9E21180 |
|---|---|
| range of product | Acti9 |
| Product name | Acti9 iRC |
| Product or component type | Control relay |
| Device short name | iRCP |
| Device application | Phase control relay |
| Signal contacts composition | 1 C/O |
| [Ie] rated operational current | 8 A at 250 V AC (cos Phi = 1) |
| Local signalling | Red LED for fault It reports phase loss or reversal Green LED for power on |
| Type of setting | Rotary knob: asymmetry Selected by wiring: measurement range |
| Tripping threshold | 5...25 % of Us phase asymmetry |
| Hysteresis | 5 % |
| Time delay range | 0.3 s |
| Accuracy error | +/- 10 % |
| [Us] rated supply voltage | 400 V AC 50/60 Hz |
| Power consumption in VA | 3 VA |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 4 |
| Height | 88.1 mm |
| Width | 36 mm |
| Depth | 67 mm |
| Net weight | 0.21 kg |
| Colour | White |
| Connections - terminals | Tunnel type terminals (top or bottom) 6 cable(s) 1.5 mm² rigid |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -40…80 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
