Acti9 iSW

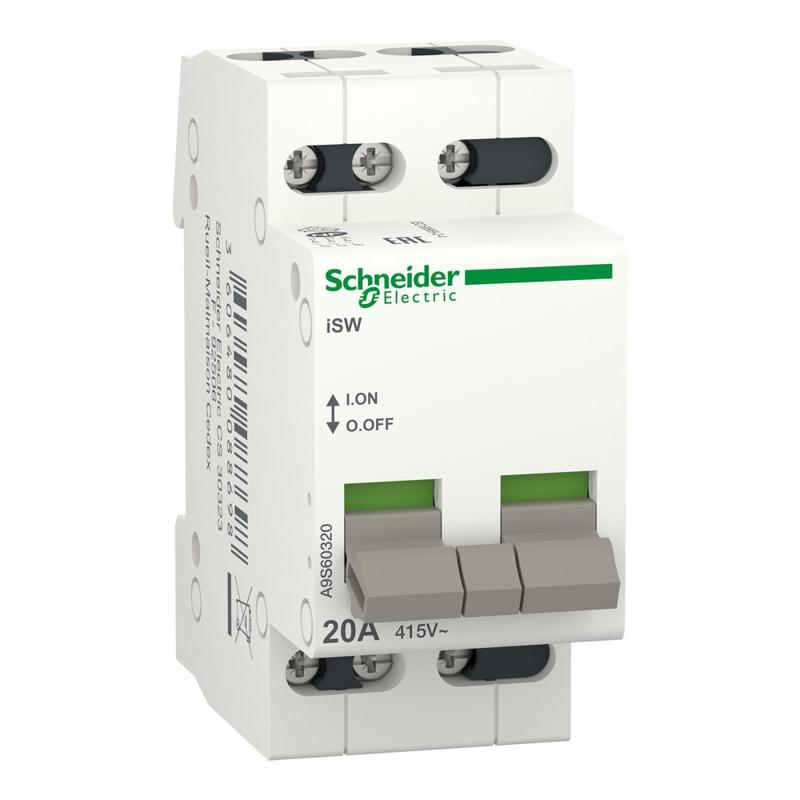

Schneider Electric catalog image for this SKU; may represent the product family.
SWITCH DISCONNECTOR
switch Acti9 iSW - 3 poles - 20 A - 415V
SKU A9S60320Schneider Electric A9S60320 is a switch disconnector in the Acti9 iSW range. Key specifications include operational current: 20 A at 415 V AC 50/60 Hz; poles: 3P; operational voltage: 415 V AC 50/60 Hz.
20 A at 415 V AC 50/60 HzOperational current
3PPoles
415 V AC 50/60 HzOperational voltage
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | A9S60320 |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iSW |
| Product or component type | Switch disconnector |
| Device short name | iSW |
| Device application | Control |
| Poles description | 3P |
| Utilisation category | AC-22A |
| Suitability for isolation | Yes |
| [Ie] rated operational current | 20 A at 415 V AC 50/60 Hz |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60669-2-4 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 4 |
| Height | 77 mm |
| Width | 36 mm |
| Depth | 70 mm |
| Colour | White |
| Mechanical durability | 300000 cycles |
| Electrical durability | 30000 cycles |
| Connections - terminals | Tunnel type terminals - 10 mm² - rigid Tunnel type terminals - 10 mm² - flexible Tunnel type terminals - 10 mm² - flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1.2 N.m |
| Standards | EN/IEC 60669-2-4 |
| IP degree of protection | IP4 |
| Pollution degree | 2 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
