AUXILIARY CONTACT BLOCK

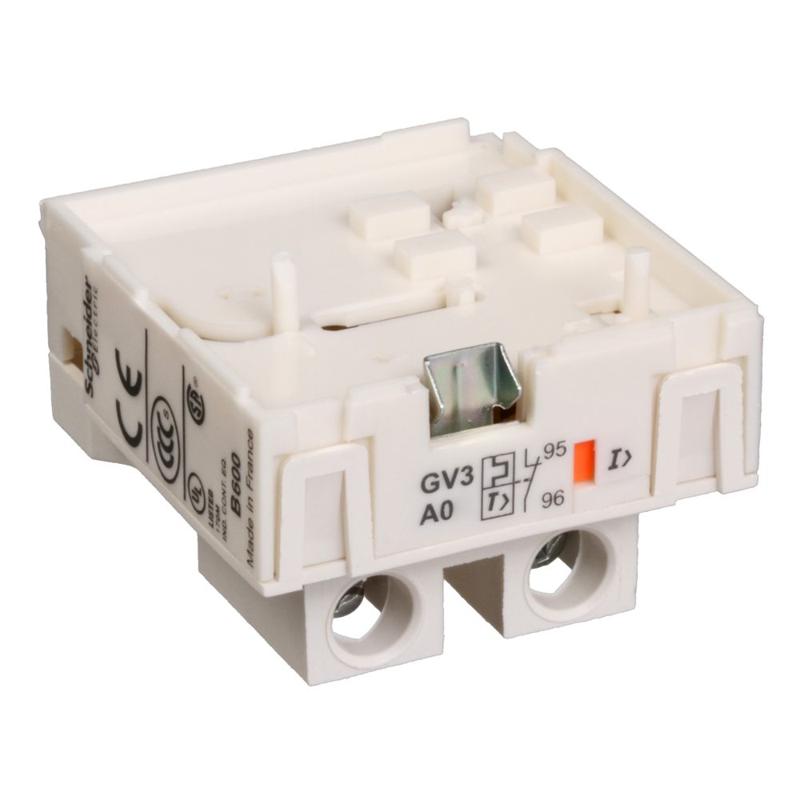

TeSys Deca - auxiliary contact- 1 NC early-break (fault)
SKU GV3A08Schneider Electric GV3A08 is a auxiliary contact block in the TeSys range. Key specifications include contact configuration: 1 NC; quantity per set: Set of 10; operational voltage: 48...690 V AC.
1 NCContact configuration
Set of 10Quantity per set
48...690 V ACOperational voltage
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | GV3A08 |
|---|---|
| Range | TeSys |
| Device short name | GV3A |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV3ME |
| Mounting location | Front side |
| Auxiliary contacts operation | Fault signal 1 NC |
| Pole contact composition | 1 NC |
| Quantity per set | Set of 10 |
| [Ui] rated insulation voltage | 600 V conforming to UL 508 690 V conforming to IEC 60947-1 600 V conforming to CSA C22.2 No 14 |
| [Ue] rated operational voltage | 48...690 V AC 24...220 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Mechanical durability | 1000 cycles |
| Protection type | GB2CB... circuit breaker GG fuse 6 A |
| Rated operational power in VA | 240 VA at 48 V AC-11 - electrical durability: 1000 cycles at 5 A 450 VA at 440 V AC-11 - electrical durability: 1000 cycles at 1 A 450 VA at 500 V AC-11 - electrical durability: 1000 cycles at 1 A 200 VA at 690 V AC-11 - electrical durability: 1000 cycles at 0.3 A 460 VA at 110…127 V AC-11 - electrical durability: 1000 cycles at 3.6 A 800 VA at 220…240 V AC-11 - electrical durability: 1000 cycles at 3.5 A 850 VA at 380…415 V AC-11 - electrical durability: 1000 cycles at 2.2 A |
| Rated operational power in W | 180 W at 24 V DC-11 - electrical durability: 1000 cycles 180 W at 48 V DC-11 - electrical durability: 1000 cycles 135 W at 60 V DC-11 - electrical durability: 1000 cycles 105 W at 110 V DC-11 - electrical durability: 1000 cycles 90 W at 220 V DC-11 - electrical durability: 1000 cycles |
| Width | 9 mm |
| Environmental characteristic | Normal environment |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
